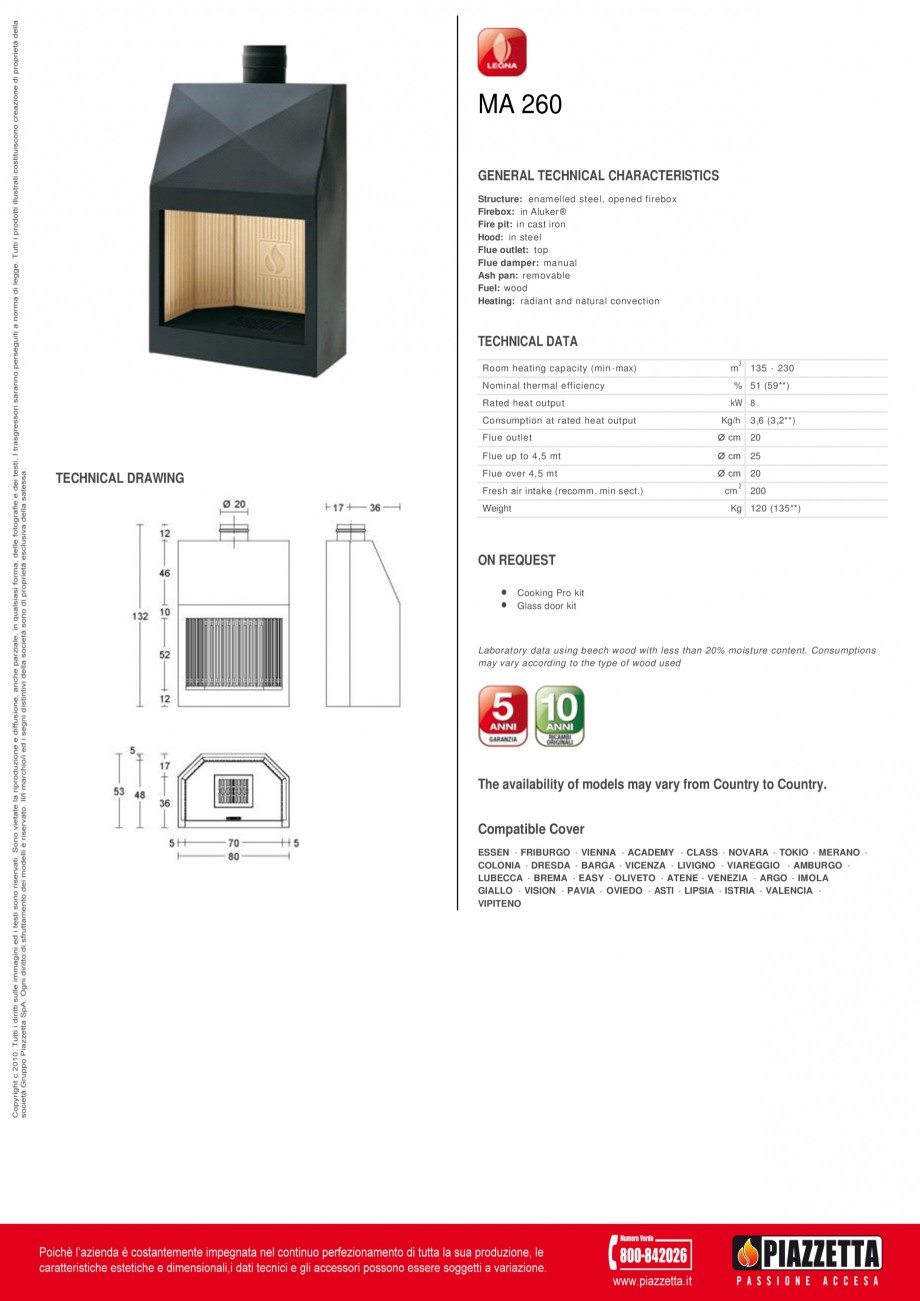

Pagina 1-Focar  Piazzetta MA 260 Fisa tehnica Engleza MA 260
GENERAL TECHNICAL CHARACTERISTICS
Structure:...
MA 260 GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, opened firebox Firebox: in Aluker ® Fire pit: in cast iron Hood: in steel Flue outlet: top Flue damper: manual Ash pan: removable Fuel: wood Heating: radiant and natural convection TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency Rated heat output Consumption at rated heat output m 3 135 - 230 % 51 (59**) kW 8 Kg/h 3,6 (3,2**) Flue outlet 20 Flue up to 4,5 mt TECHNICAL DRAWING Ø cm Ø cm 25 Flue over 4,5 mt Ø cm 20 Fresh air intake (recomm. min sect.) Weight cm 2 200 Kg 120 (135**) ON REQUEST   Cooking Pro kit Glass door kit Laboratory data using beech wood with less than 20% moisture content. Consumptions may vary according to the type of wood used The availability of models may vary from Country to Country. Compatible Cover ESSEN - FRIBURGO - VIENNA - ACADEMY - CLASS - NOVARA - TOKIO - MERANO COLONIA - DRESDA - BARGA - VICENZA - LIVIGNO - VIAREGGIO - AMB ... ascunde
