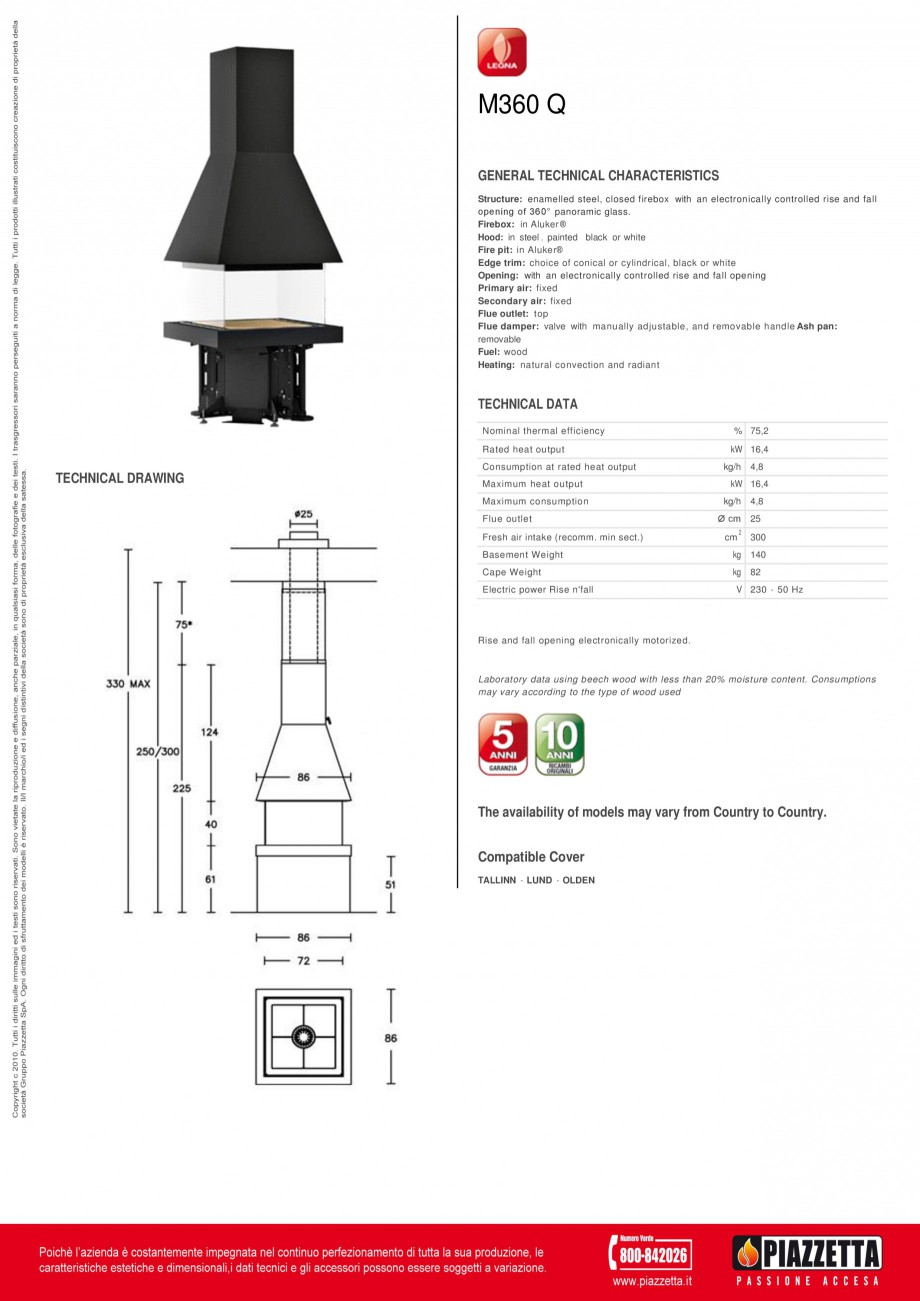

Pagina 1-Focar Piazzetta M 360 Q Fisa tehnica Engleza M360 Q
GENERAL TECHNICAL CHARACTERISTICS
Structure:...
M360 Q GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox with an electronically controlled rise and fall opening of 360° panoramic glass. Firebox: in Aluker ® Hood: in steel , painted black or white Fire pit: in Aluker® Edge trim: choice of conical or cylindrical, black or white Opening: with an electronically controlled rise and fall opening Primary air: fixed Secondary air: fixed Flue outlet: top Flue damper: valve with manually adjustable, and removable handle Ash pan: removable Fuel: wood Heating: natural convection and radiant TECHNICAL DATA Nominal thermal efficiency Rated heat output Consumption at rated heat output TECHNICAL DRAWING Maximum heat output Maximum consumption Flue outlet Fresh air intake (recomm. min sect.) % 75,2 kW 16,4 kg/h 4,8 kW 16,4 kg/h 4,8 Ø cm 25 cm 2 300 Basement Weight kg 140 Cape Weight kg 82 Electric power Rise n'fall V 230 - 50 Hz Rise and fall opening electronically motorized. Laboratory data us ... ascunde
