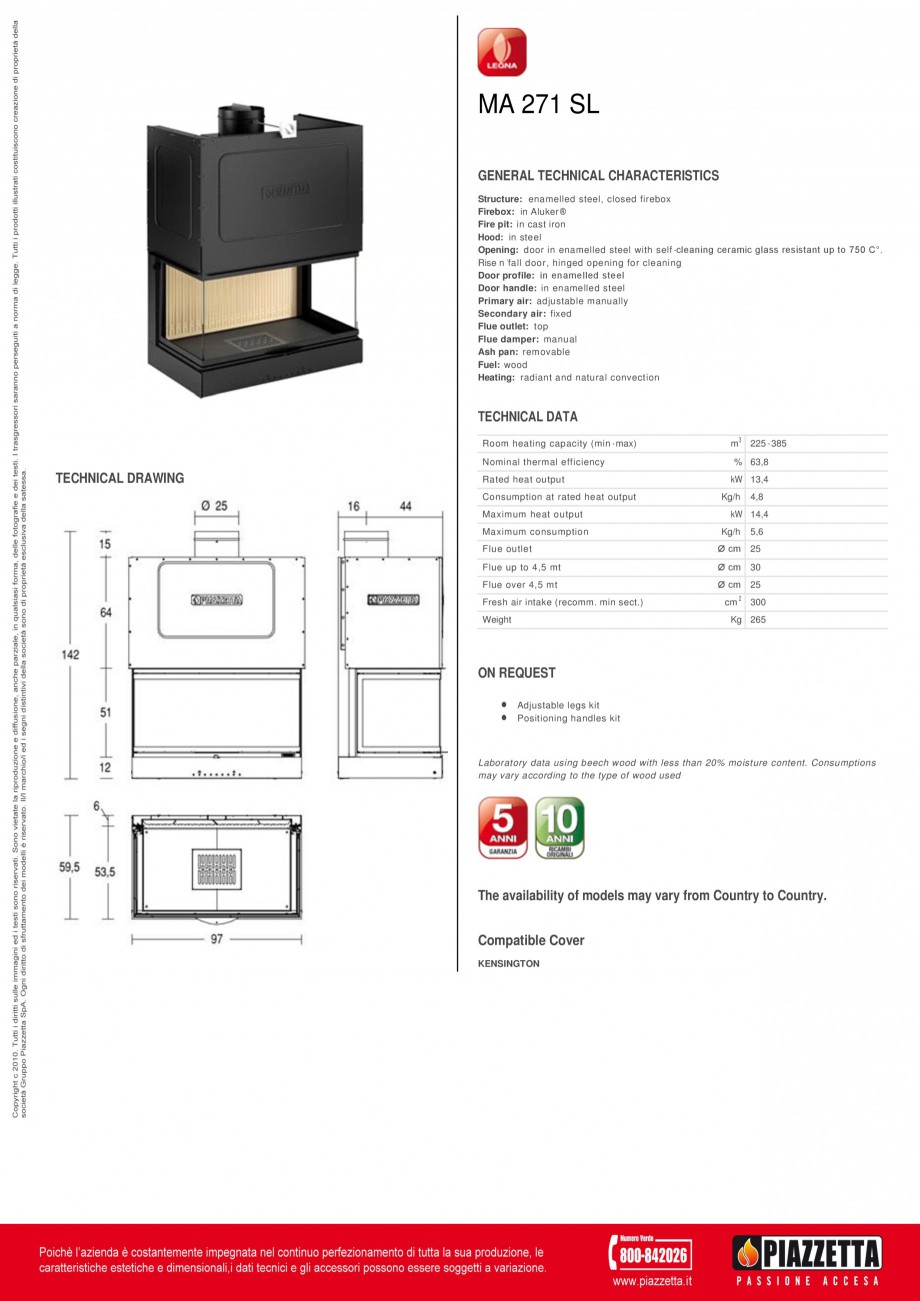

Pagina 1-Focar Piazzetta M 271 SL Fisa tehnica Engleza MA 271 SL
MA 271 SL GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, closed firebox Firebox: in Aluker ® Fire pit: in cast iron Hood: in steel Opening: door in enamelled steel with self -cleaning ceramic glass resistant up to 750 C°.  Rise n ’fall door, hinged opening for cleaning Door profile:  in enamelled steel   Door handle: in enamelled steel Primary air: adjustable manually Secondary air: fixed Flue outlet: top Flue damper: manual Ash pan: removable Fuel: wood Heating: radiant and natural convection TECHNICAL DATA Room heating capacity (min - max) Nominal thermal efficiency TECHNICAL DRAWING Rated heat output Consumption at rated heat output Maximum heat output Maximum consumption m 3 225 - 385 % 63,8 kW 13,4 Kg/h 4,8 kW 14,4 Kg/h 5,6 Flue outlet Ø cm 25 Flue up to 4,5 mt Ø cm 30 Flue over 4,5 mt Ø cm 25 Fresh air intake (recomm. min sect.) Weight cm 2 300 Kg 265 ON REQUEST   Adjustable legs kit Positioning handles kit Laborato ... ascunde
