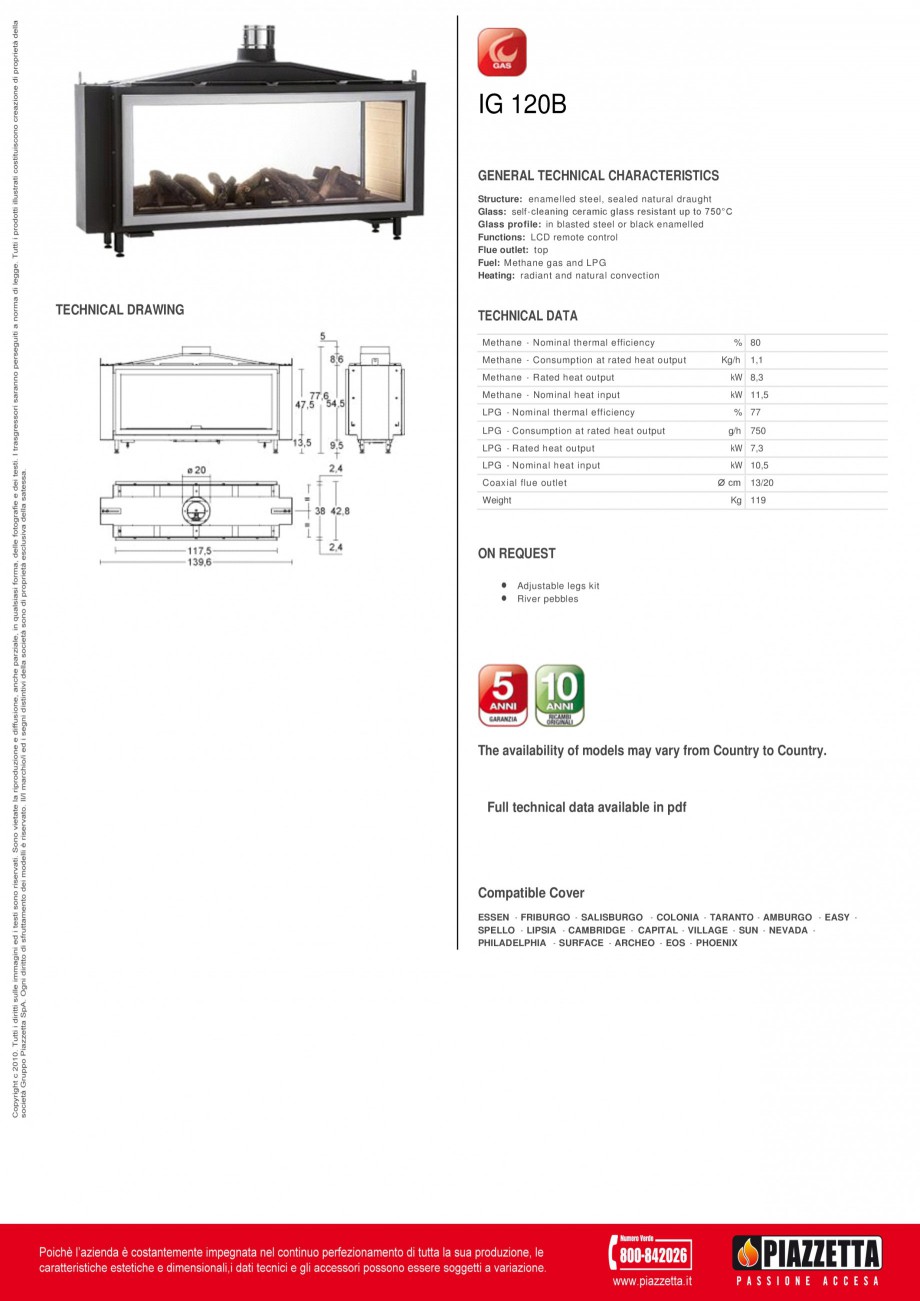

Pagina 1-Focar Piazzetta IG-120B Fisa tehnica Engleza IG 120B
GENERAL TECHNICAL CHARACTERISTICS
Structure:...
IG 120B GENERAL TECHNICAL CHARACTERISTICS Structure: enamelled steel, sealed natural draught Glass: self - cleaning ceramic glass resistant up to 750°C Glass profile: in blasted steel or black enamelled Functions: LCD remote control Flue outlet: top Fuel: Methane gas and LPG Heating: radiant and natural convection TECHNICAL DRAWING TECHNICAL DATA Methane - Nominal thermal efficiency Methane - Consumption at rated heat output % 80 Kg/h 1,1 Methane - Rated heat output kW 8,3 Methane - Nominal heat input kW 11,5 LPG - Nominal thermal efficiency % 77 LPG - Consumption at rated heat output g/h 750 LPG - Rated heat output kW 7,3 LPG - Nominal heat input Coaxial flue outlet Weight kW 10,5 Ø cm 13/20 Kg 119 ON REQUEST   Adjustable legs kit River pebbles The availability of models may vary from Country to Country. Full technical data available in pdf Compatible Cover ESSEN - FRIBURGO - SALISBURGO - COLONIA - TARANTO - AMBURGO - EASY SPELLO - LIPSIA - CAMBRIDGE - C ... ascunde
