Tip documentatie: Fisa tehnica

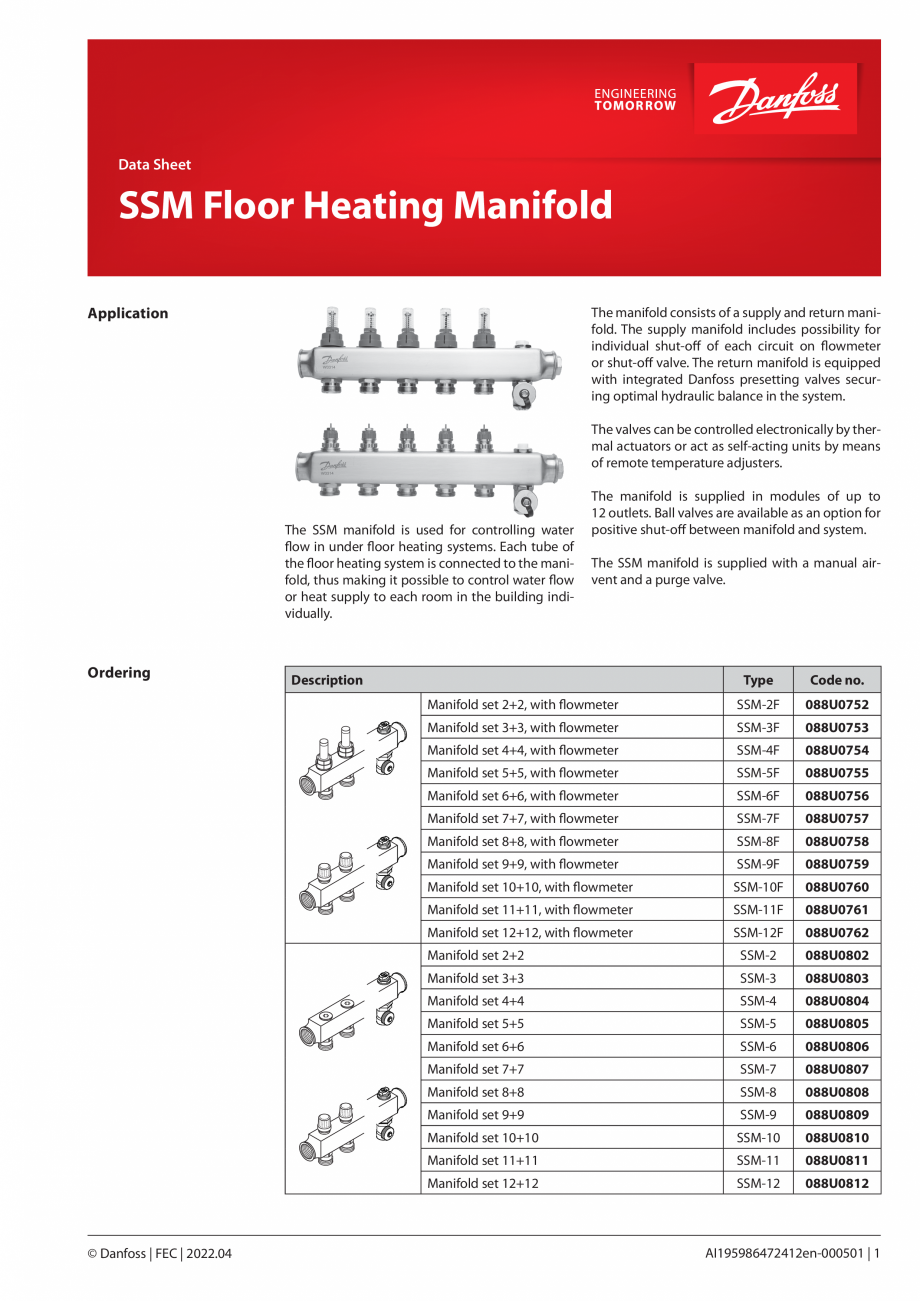

Pagina 1 - Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, ...

Data Sheet SSM Floor Heating Manifold Application The manifold consists of a supply and return manifold. The supply manifold includes possibility for individual shut-off of each circuit on flowmeter or shut-off valve. The return manifold is equipped with integrated Danfoss presetting valves securing optimal hydraulic balance in the system. The valves can be controlled electronically by thermal actuators or act as self-acting units by means of remote temperature adjusters. The SSM manifold is used for controlling water flow in under floor heating systems. Each tube of the floor heating system is connected to the manifold, thus making it possible to control water flow or heat supply to each room in the building individually. Ordering © Danfoss | FEC | 2022.04 The manifold is supplied in modules of up to 12 outlets. Ball valves are available as an option for positive shut-off between manifold and system. The SSM manifold is supplied with a manual airvent and a purge valve. Des

Pagina 1-Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, SSM 9+9,...

Pagina 2 - Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, ...

cription Type Code no. Manifold set 2+2, with flowmeter SSM-2F 088U0752 Manifold set 3+3, with flowmeter SSM-3F 088U0753 Manifold set 4+4, with flowmeter SSM-4F 088U0754 Manifold set 5+5, with flowmeter SSM-5F 088U0755 Manifold set 6+6, with flowmeter SSM-6F 088U0756 Manifold set 7+7, with flowmeter SSM-7F 088U0757 Manifold set 8+8, with flowmeter SSM-8F 088U0758 Manifold set 9+9, with flowmeter SSM-9F 088U0759 Manifold set 10+10, with flowmeter SSM-10F 088U0760 Manifold set 11+11, with flowmeter SSM-11F 088U0761 Manifold set 12+12, with flowmeter SSM-12F 088U0762 Manifold set 2+2 SSM-2 088U0802 Manifold set 3+3 SSM-3 088U0803 Manifold set 4+4 SSM-4 088U0804 Manifold set 5+5 SSM-5 088U0805 Manifold set 6+6 SSM-6 088U0806 Manifold set 7+7 SSM-7 088U0807 Manifold set 8+8 SSM-8 088U0808 Manifold set 9+9 SSM-9 088U0809 Manifold set 10+10 SSM-10 088U0810 Manifold set 11+11 SSM-11 088U0811 Manifold set 12+12 SSM-12 088U0812

Pagina 2-Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, SSM 9+9,...

Pagina 3 - Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, ...

AI195986472412en-000501 | 1 Data Sheet SSM Floor Heating Manifold Ordering SSM-FB 088U0652 SSM-FB 088U0653 SSM-FB 088U0654 SSM-FB 088U0655 SSM-FB 088U0656 SSM-FB 088U0657 SSM-FB 088U0658 SSM-FB 088U0659 SSM-FB 088U0660 SSM-FB 088U0661 SSM-FB 088U0662 Type Code no. FHF-MB 088U0585 SSM-MB 088U0595 Mounting brackets — set (straight) SSM-MB 088U0596 2 × ball valve 1” — for connection to manifold and for blocking of floor heating system FHF-BV 088U0822 1 × thermometer (0 °C to 60 °C) Ø 35 mm — for flow/return temperature measurement FHD-T 088U0029 Union, 1” — 088U0820 Replacement valve for manifold — 013G7376 Reducing Bush FHF-R 088U0584 Connection piece FHF-C 088U0583 — 088U0819 TWA-A 088H3110 TWA-A 088H3112 TWA-A 088H3114 088U0752-62 SSM-F manifold with flow meter 088U0596 SSM-MB mounting bracket - set (Straight) 013G4186 Compression fittings for ALUPEX tubing, 16 x 2mm Ball valve set (NO THERMOMETER)

Pagina 3-Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, SSM 9+9,...

Pagina 4 - Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, ...

Accessories Description Mounting brackets — set (offset) Flowmeter Thermal actuator, 24V, NC, Danfoss RA connection to valve Thermal actuator, 230V, NC, Danfoss RA connection to valve Thermal actuator, 24V, NC, with end switch, Danfoss RA connection to valve 2 | © Danfoss | FEC | 2022.04 AI195986472412en-000501 Data Sheet SSM Floor Heating Manifold Accessories Stuffing box for manifolds Automatic air ventilation valve Insulation capsule for SSM manifold Compression fittings Description DZR 013G0554 SSM-AV 088U0945 SSM-I 088U0824 Type, mm Code no. 12 × 2 013G4152 13 × 2 013G4153 14 × 2 013G4154 Compression fittings for PEX tubing in accordance with ISO 15875. 15 × 2,5 013G4155 16 × 1,5 013G4157 Max working pressure: 6 bar Test pressure: 10 bar Max. flow temperature: 95 °C G ¾” internal thread 16 × 2 013G4156 1) 16 × 2,2 013G4163 17 × 2 013G4162 Max. flow temperature given by the tube manufacturer must not be exceeded. 18 × 2

Pagina 4-Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, SSM 9+9,...

Pagina 5 - Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, ...

013G4158 18 × 2,5 013G4159 20 × 2 013G4160 20 × 2,25 013G4093 1) 20 × 2,5 013G4161 12 × 2 013G4182 14 × 2 013G4184 15 × 2,5 013G4185 16 × 2 013G4186 2) 16 × 2,25 013G4187 18 × 2 013G4188 20 × 2 013G4190 20 × 2,25 013G4093 2) 20 × 2,5 013G4191 Compression fittings for ALUPEX tubing. Max working pressure: 6 bar Test pressure: 10 bar Max flow temperature: 95 °C G ¾” Internal thread Max flow temperature given by the tube manufacturer must not be exceeded. Compression fittings also suitable for PERT tubing in accordance with ISO 15875. 2) Compression fittings also suitable for PERT/ALU/PERT tubing. 1) © Danfoss | FEC | 2022.04 AI195986472412en-000501 | 3 Data Sheet SSM Floor Heating Manifold Capacity/commissioning The pre-setting of the manifold valves determines the flow in the floor heating tubes and is therefore an important factor for obtaining optimal hydraulic balance in the system. A correct hydraulic balance is important if

Pagina 5-Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, SSM 9+9,...

Pagina 6 - Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, ...

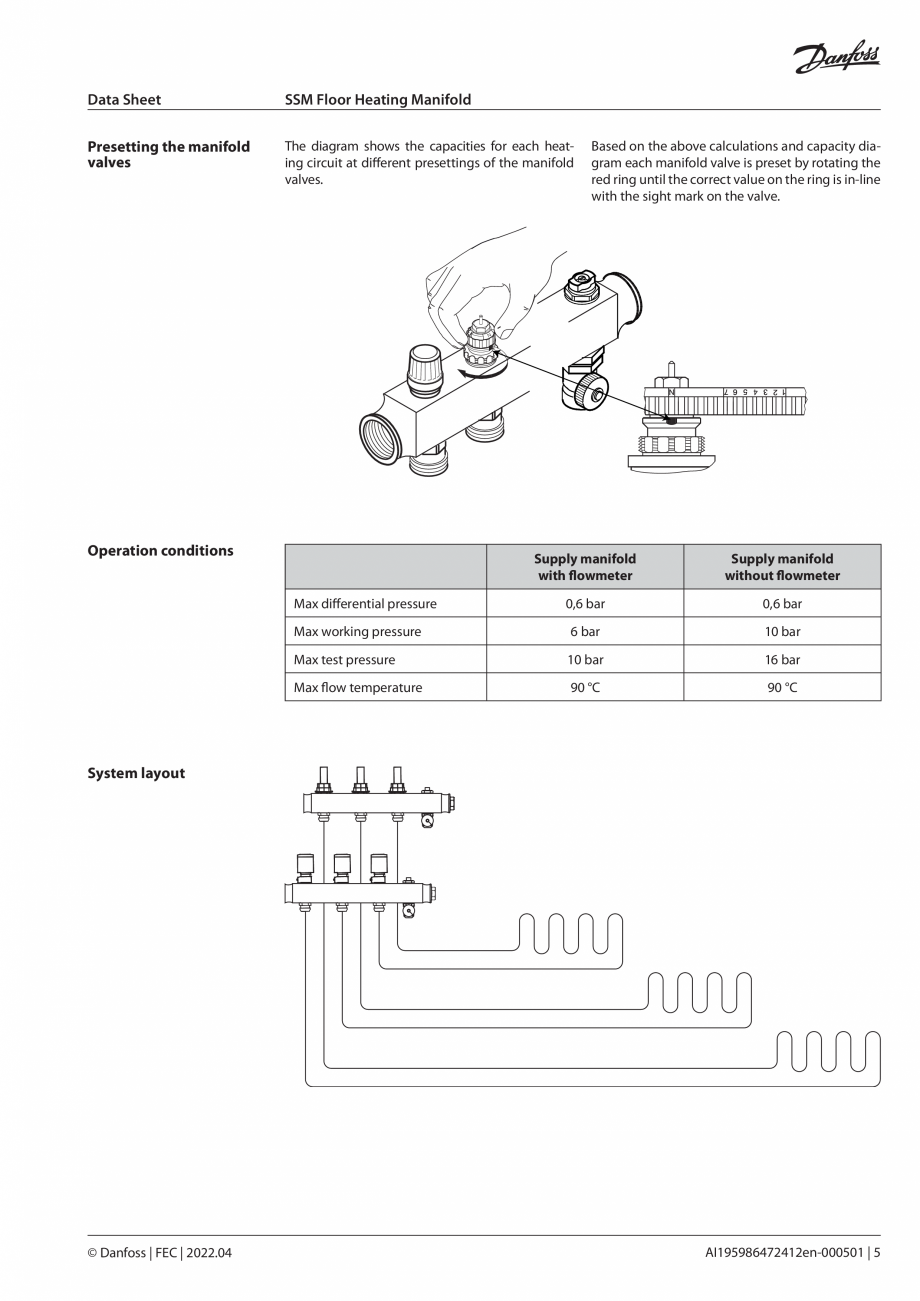

optimal comfort shall be achieved with a minimum of energy consumption and is easily carried out following the example shown below. Example Room 1: 1. Determine longest tube/largest room 25 m2 2. Desired cooling (Δt) 5 °C (typical) 3. Determine heat requirement for the room 50 W/m2 4. Conversion factor 5. Calculation of flow for the room Room 2: 1,16 Q (l/h) = 6. Determine area for the next room 7. Calculation of flow for the room (Δt and heat requirement is assumed identical for the rooms in this case) 50 W/m × 25 m = 216 l/h 5 °C × 1,16 2 2 15 m2 Q (l/h) = 50 W/m2 × 15 m2 = 129 l/h 5 °C × 1,16 Manifold, with flowmeter Pre-setting: Room 1  N Room 2  5 Manifold, without flowmeter Pre-setting: Room 1  N Room 2  6 4 | © Danfoss | FEC | 2022.04 AI195986472412en-000501 Data Sheet SSM Floor Heating Manifold Presetting the manifold valves The diagram shows the capacities for each heating circuit at different presettings of the manifold valves.

Pagina 6-Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, SSM 9+9,...

Pagina 7 - Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, ...

Operation conditions Based on the above calculations and capacity diagram each manifold valve is preset by rotating the red ring until the correct value on the ring is in-line with the sight mark on the valve. Supply manifold with flowmeter Supply manifold without flowmeter 0,6 bar 0,6 bar Max working pressure 6 bar 10 bar Max test pressure 10 bar 16 bar Max flow temperature 90 °C 90 °C Max differential pressure System layout © Danfoss | FEC | 2022.04 AI195986472412en-000501 | 5 Data Sheet SSM Floor Heating Manifold Dimensions L1 55 G1 ISO228/1 50 359 213 G1 ISO228/1 G1 ISO228/1 G1 ISO228/1 78 L1 55 G1 ISO228/1 50 213 359 G1 ISO228/1 G1 ISO228/1 G1 ISO228/1 78 with 088U0585 brackets set 6 | © Danfoss | FEC | 2022.04 Type 2+2 3+3 4+4 5+5 6+6 7+7 8+8 9+9 L1 (mm) 190 240 290 340 390 440 490 540 10+10 11+11 12+12 590 640 690 AI195986472412en-000501 Data Sheet SSM Floor Heating Manifold Dimensions L1 42 G1

Pagina 7-Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, SSM 9+9,...

Pagina 8 - Distribuitor inox DANFOSS SSM 2+2, SSM 3+3, SSM 4+4, SSM 5+5, SSM 6+6, SSM 7+7, SSM 8+8, ...

ISO228/1 50 359 213 G1 ISO228/1 G1 ISO228/1 G1 ISO228/1 65 L1 42 G1 ISO228/1 50 213 359 G1 ISO228/1 G1 ISO228/1 G1 ISO228/1 65 with 088U0595 brackets set © Danfoss | FEC | 2022.04 Type 2+2 3+3 4+4 5+5 6+6 7+7 8+8 9+9 L1 (mm) 190 240 290 340 390 440 490 540 10+10 11+11 12+12 590 640 690 AI195986472412en-000501 | 7 L1 36,5 G1 ISO228/1 50 208 G1 ISO228/1 344 Dimensions G1 ISO228/1 G1 ISO228/1 71,5 L1 36,5 G1 ISO228/1 208 G1 ISO228/1 344 50 G1 ISO228/1 G1 ISO228/1 71,5 with 088U0596 brackets set 8 | © Danfoss | FEC | 2022.04 Type 2+2 3+3 4+4 5+5 6+6 7+7 8+8 9+9 L1 (mm) 190 240 290 340 390 440 490 540 10+10 11+11 12+12 590 640 690 AI195986472412en-000501
