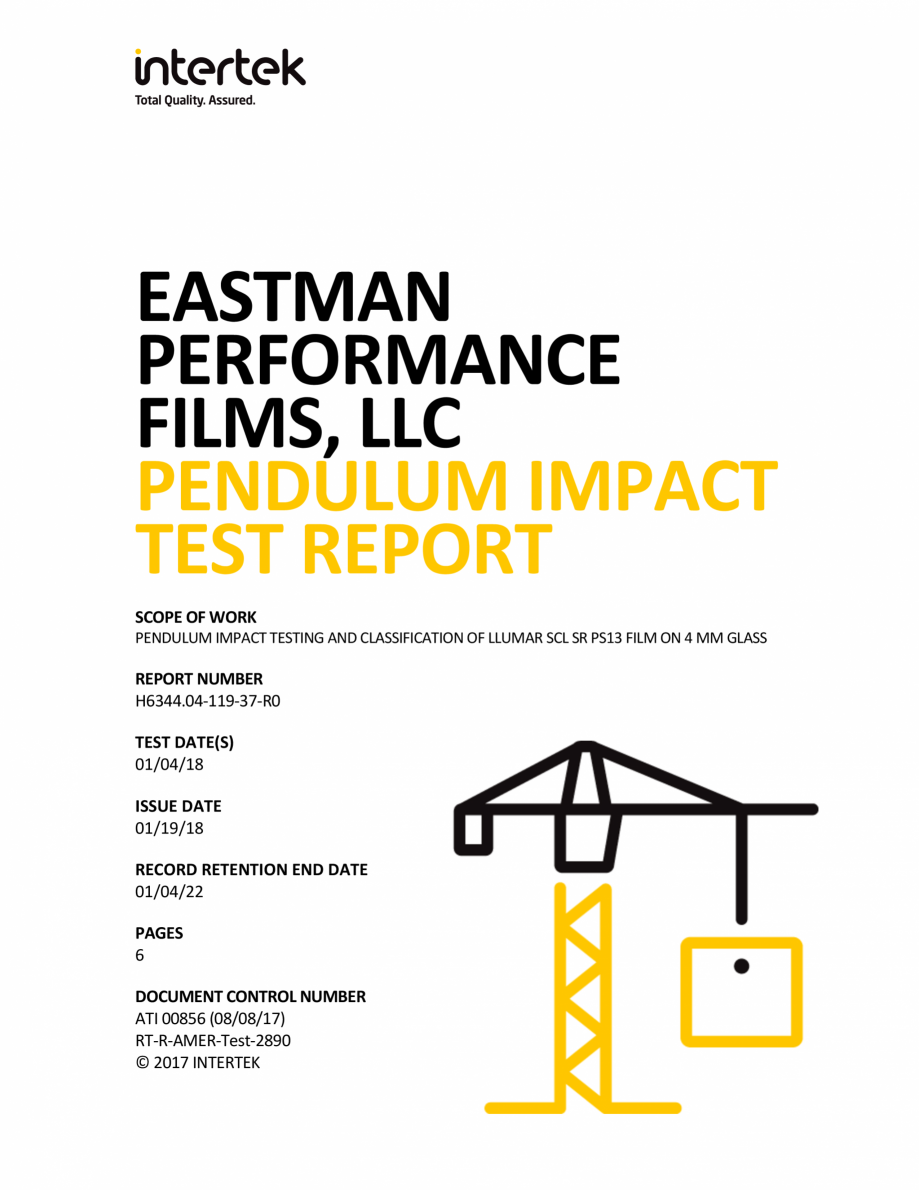

$Pagina 1 - Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar ...$ EASTMAN PERFORMANCE FILMS, LLC PENDULUM IMPACT TEST REPORT SCOPE OF WORK PENDULUM IMPACT TESTING AND CLASSIFICATION OF LLUMAR SCL SR PS13 FILM ON 4 MM GLASS REPORT NUMBER H6344.04-119-37-R0 TEST DATE(S) 01/04/18 ISSUE DATE 01/19/18 RECORD RETENTION END DATE 01/04/22 PAGES 6 DOCUMENT CONTROL NUMBER ATI 00856 (08/08/17) RT-R-AMER-Test-2890 © 2017 INTERTEK 130 Derry Court York, Pennsylvania 17406 Telephone: 717-764-7700 Facsimile: 717-764-4129 www.intertek.com/building TEST REPORT FOR EASTMAN PERFORMANCE FILMS, LLC Report No.: H6344.04-119-37-R0 Date: 01/19/18 REPORT ISSUED TO EASTMAN PERFORMANCE FILMS, LLC 4210 The Great Road Fieldale, Virginia 24089 SECTION 1 SCOPE Intertek Building & Construction (B&C) was contracted by Eastman Performance Films, LLC, Fieldale, Virginia to perform safety glazing material performance testing in accordance with DIN EN 12600: 2002 on their LLumar SCL SR PS13 film on 4 mm thick annealed glass. Results obtained are tested values and were secured by usi

$Pagina 1-Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar Certificare...$

$Pagina 2 - Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar ...$ ng the designated test method. Testing was conducted at the Intertek test facility in York, Pennsylvania. This report does not constitute certification of this product nor an opinion or endorsement by this laboratory. SECTION 2 SUMMARY OF TEST RESULTS Film: LLumar SCL SR PS13 Glass: 4 mm annealed glass Glazing Type: Film-Backed (Organic Coated) Glass Material Type: Asymmetric Performance Classification: 2(B)2 For INTERTEK B&C: COMPLETED BY: Todd M. Wilt REVIEWED BY: Virgal T. Mickley, Jr., P.E. TITLE: Lead Technician TITLE: Senior Staff Engineer SIGNATURE: DATE: 01/19/18 SIGNATURE: DATE: 01/19/18 TMW:vtm/aaa This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occa

$Pagina 2-Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar Certificare...$

$Pagina 3 - Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar ...$ sioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample(s) tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Version: 08/08/17 Page 2 of 6 RT-R-AMER-Test-2890 130 Derry Court York, Pennsylvania 17406 Telephone: 717-764-7700 Facsimile: 717-764-4129 www.intertek.com/building TEST REPORT FOR EASTMAN PERFORMANCE FILMS, LLC Report No.: H6344.04-119-37-R0 Date: 01/19/18 SECTION 3 TEST METHOD The specimens were evaluated in accordance with the following: BS EN 12600 - 2002, Glass in building, Pendulum test - Impact test method and classification for flat glass,

$Pagina 3-Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar Certificare...$

$Pagina 4 - Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar ...$ European Standard (April 2003) SECTION 4 MATERIAL SOURCE Clear, annealed glass lites were delivered to Intertek from United Plate Glass on 11/06/17. Film (organic coating) supplied by Eastman Performance Films, LLC was applied to the annealed glass lites by Eastman Performance Films, LLC authorized installers at our test facility on 11/14/17 and allowed to condition for approximately seven (7) weeks prior to testing. The specimens were conditioned before and during testing between 20° to 29°C. SECTION 5 SAMPLE RETENTION All test specimens were destroyed by test or by personnel and have been disposed of as trash. SECTION 6 EQUIPMENT ASSET # 63303-1 005310 DESCRIPTION Impact Frame Impactor (50kg/110lb) CAL DUE DATE 03/26/18 10/13/18 ASSET # DESCRIPTION INT00433 Thermometer 62039 Weight Scale CAL DUE DATE 01/11/18 09/13/18 65852 Calipers/Thickness 09/13/18 Gauge The test rig (impact frame and impactor) was last calibrated in accordance with Annex B of EN 12600 on 03/26/15. Per BS

$Pagina 4-Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar Certificare...$

$Pagina 5 - Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar ...$ EN 12600 section B.4, the calibration shall be in effect for three years. SECTION 7 LIST OF OFFICIAL OBSERVERS NAME Charles Adiasor Todd M. Wilt Cory E. Straub Version: 08/08/17 COMPANY Eastman Chemical Intertek B&C Intertek B&C Page 3 of 6 RT-R-AMER-Test-2890 130 Derry Court York, Pennsylvania 17406 Telephone: 717-764-7700 Facsimile: 717-764-4129 www.intertek.com/building TEST REPORT FOR EASTMAN PERFORMANCE FILMS, LLC Report No.: H6344.04-119-37-R0 Date: 01/19/18 SECTION 8 TEST PROCEDURE Each test specimen was mounted within the test fixture, the film edges were captured by the specimen mounting clamps, and impacted in accordance with DIN EN 12600:2002. The specimens were impacted from the lowest drop height and continued to next drop height as long as the specimen remained unbroken or, when broke, broke in accordance with the test performance requirements (BS EN 12600, clause 4a). Tested specimens which remained unbroken were tested again at the next sequentially higher drop

$Pagina 5-Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar Certificare...$

$Pagina 6 - Certificat Intertek pentru folli antiefractie SCL SR PS13 MASTERFOL antiefractie LLumar ...$ height. Tested specimens which broke in accordance with the test performance requirements at the designated drop height were not impacted again, the damaged specimen was replaced by an untested specimen and impacted at the next sequentially higher drop height. Specimens were impacted on both sides. Impact testing continued until all 3 drop heights were completed 4 times or until a specimen failed to meet the test performance requirements. Specimens were impacted from the following drop heights. Impact Drop Heights IMPACT CLASSIFICATION DROP HEIGHT 3 190 mm 2 450 mm 1 1200 mm Performance Classification Glazing conforming to this standard is classified as follows: - Its performance under the impact test; - The drop height at which breakage occurred; - The drop height at which the product passed in accordance with clause 4a; - The mode of breakage of the material if it remains unbroken after impact test. The performance classification of a glass product under this standard is expresse
