Centrala de ventilatie piscine ATREA DUPLEX RDH4

Limba: Romana
59 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

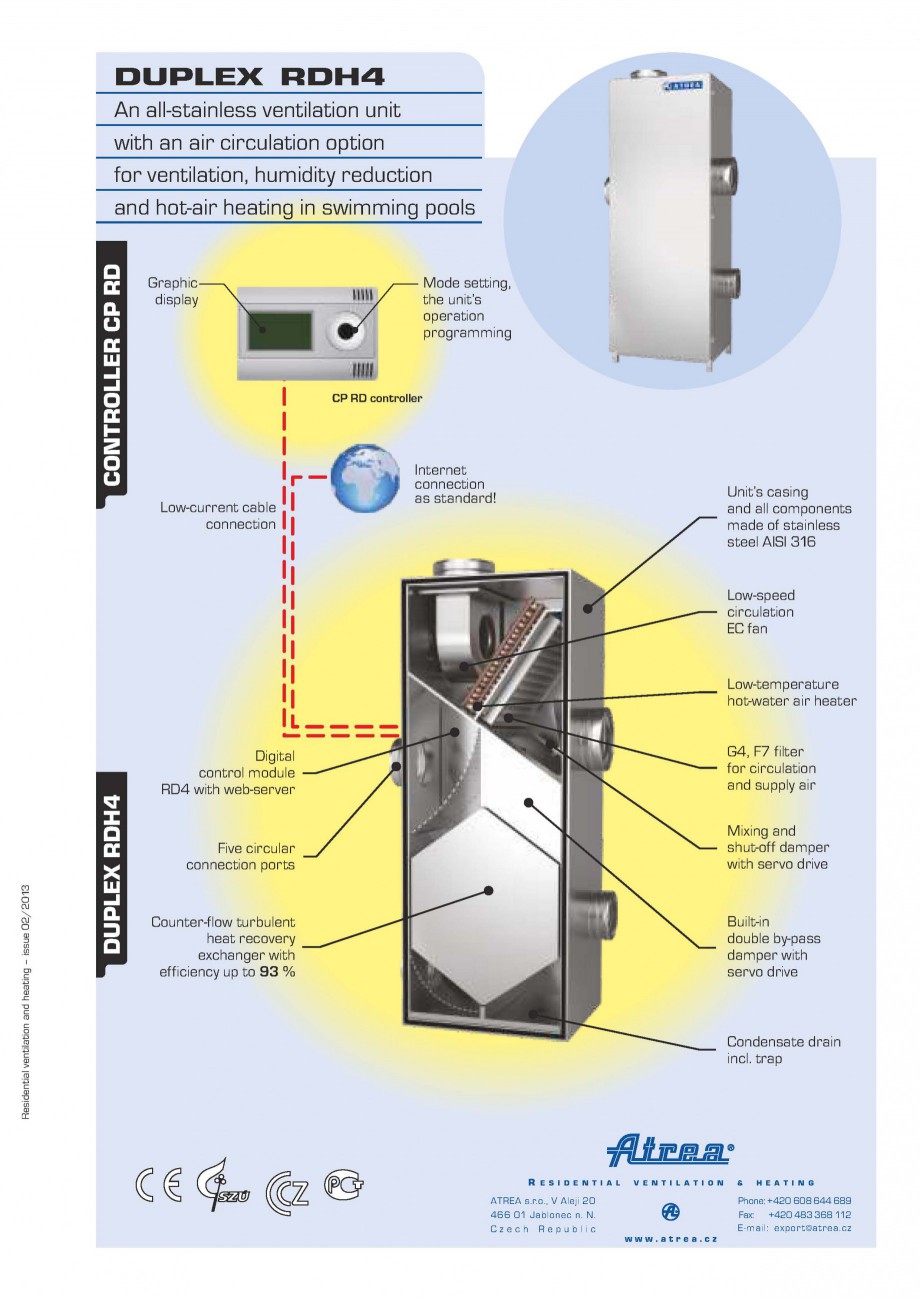

Pagina 1-Centrala de ventilatie piscine ATREA DUPLEX RDH4 Fisa tehnica Romana DUPLEX RDH4

CONTROLLER CP RD

...
Pagina 2-Centrala de ventilatie piscine ATREA DUPLEX RDH4 Fisa tehnica Romana  +420 483 368 112
E-mail: expor...
Pagina 3-Centrala de ventilatie piscine ATREA DUPLEX RDH4 Fisa tehnica Romana s reduces or even eliminates...

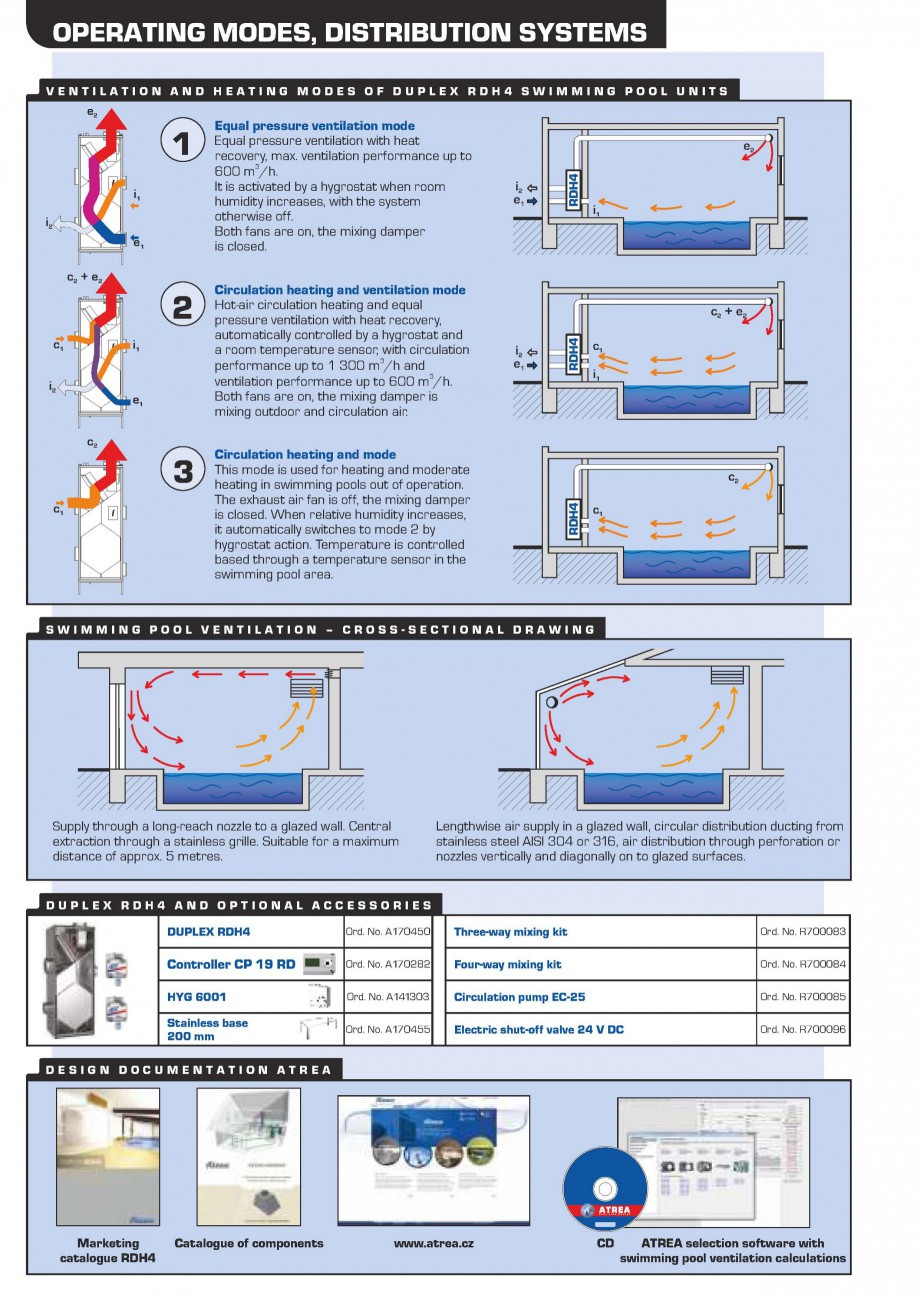

Pagina 4-Centrala de ventilatie piscine ATREA DUPLEX RDH4 Fisa tehnica Romana ific application.
Designing and...
ific application. Designing and sizing principles Typical small swimming pools have their requirements for air change rates, i.e. the supply of fresh air and the extraction of exhaust air, determined and verified according to seasons – 11 m3/hour per each square metre in winter, 16 m3 / hour per square metre in the transitional period and 32 m3/hour per square metre in summer. Sizing is optimized for the transitional period, while in winter the period of ventilation is then reduced and in summer the controlled ventilation system must be supported by opening glazed surfaces. Due to possible condensation on cold surfaces air needs to be transported to glazed areas and ducts designed from durable materials. Air-conditioning systems for swimming pools should always be designed to be separate from other areas in the building. The all-stainless air-conditioning DUPLEX RDH4 unit designed for the demanding conditions of swimming pools ensures air change rates with heat recovery at intensitie ... ascunde
