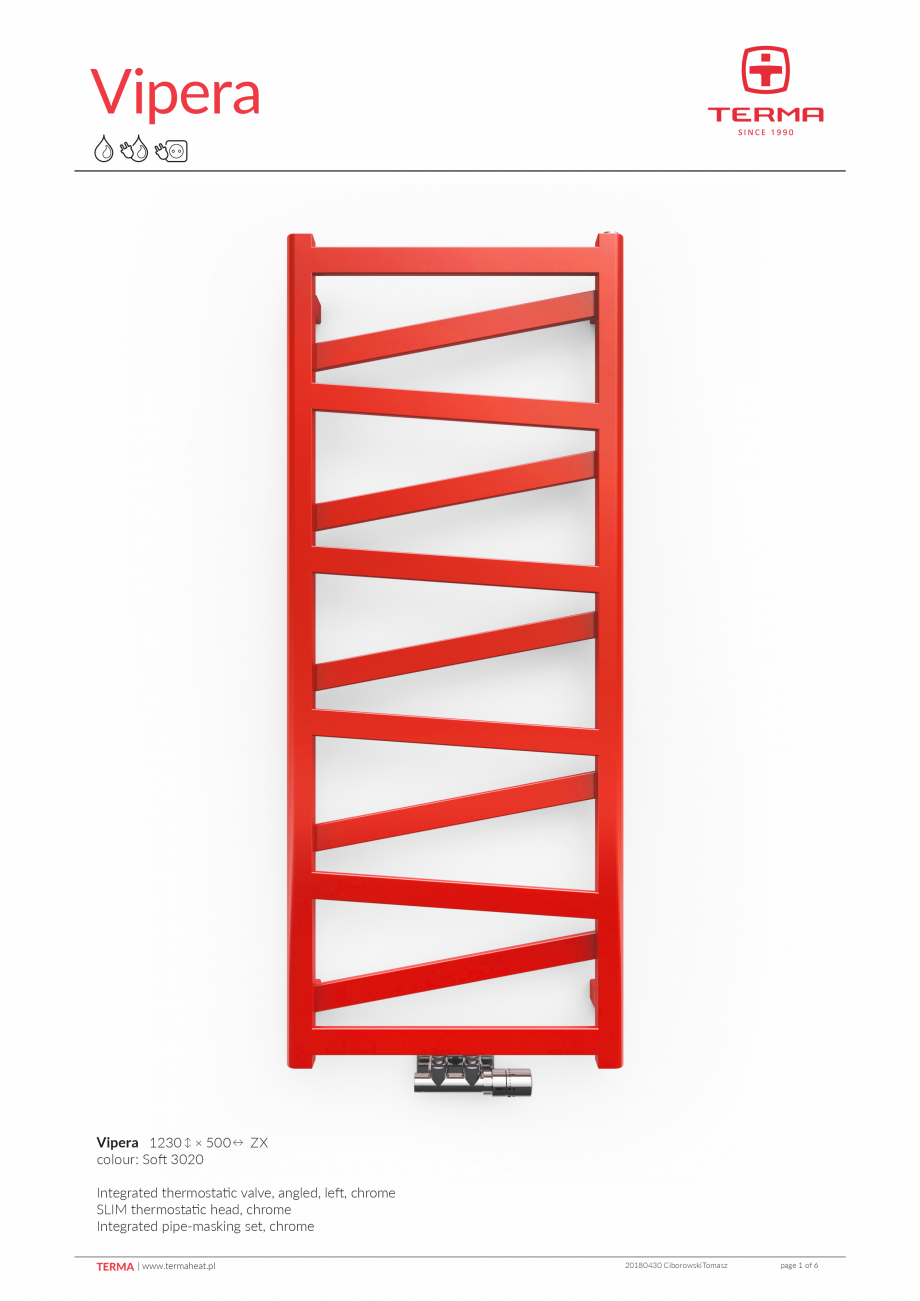

Vipera Vipera 1230 ↕ × 500 ↔ ZX colour: Soft 3020 Integrated thermostatic valve, angled, left, chrome SLIM thermostatic head, chrome Integrated pipe‑masking set, chrome TERMA | www.termaheat.pl 20180430 CiborowskiTomasz page 1 of 6 Vipera TERMA | www.termaheat.pl 20180430 CiborowskiTomasz page 2 of 6 Vipera Design : Terma Standard connections: Optional connections: 1a23 uesb xw GEFH Electric radiators: A ↕ 750÷1710: Available sizes: 5 5 510 x 400 ↕ ↔ 11 ↕ ↔ 13 11 1230 x 500 13 1470 x 400 1230 x 600 9 7 750 x 500 750 x 400 510 x 600 11 1230 x 400 7 7 5 510 x 500 13 1470 x 500 15 1470 x 600 9 9 990 x 400 750 x 600 990 x 600 990 x 500 15 15 1710 x 400 1710 x 500 1710 x 600 Specifications: Working pressure: 800 kPa Maximum operating temperature: 95°C g D E F [W] [mm] [mm] [mm] [dm³] v Product Code [W] [kg] (configuration s. 5) 163 89 200 350 330 90 1,36 3,78 WGVPA051040 192 105 200 450 330 90

Pagina 1-Calorifer decorativ baie VON LORCH Vipera Fisa tehnica Engleza Vipera

Vipera 1230 ↕ × 500 ↔ ZX...

Pagina 2 - Calorifer decorativ baie VON LORCH Vipera Fisa tehnica Engleza
1,48

4,33

WGVPA051050

...

1,48 4,33 WGVPA051050 220 120 200 550 330 90 1,61 4,89 WGVPA051060 237 129 200 350 570 90 1,97 5,18 WGVPA075040 460 280 153 300 450 570 90 2,14 5,96 WGVPA075050 560 322 176 300 550 570 90 2,32 6,73 WGVPA075060 50 360 312 169 300 350 810 90 2,58 6,59 WGVPA099040 50 460 368 200 400 450 810 90 2,81 7,59 WGVPA099050 600 50 560 423 230 400 550 810 90 3,04 8,58 WGVPA099060 1230 400 50 360 382 207 400 350 1050 90 3,19 8,00 WGVPA123040 1230 500 50 460 451 244 400 450 1050 90 3,47 9,21 WGVPA123050 1230 600 50 560 519 281 600 550 1050 90 3,75 10,43 WGVPA123060 1470 400 50 360 457 246 400 350 1290 90 3,80 9,41 WGVPA147040 1470 500 50 460 540 291 600 450 1290 90 4,13 10,85 WGVPA147050 1470 600 50 560 622 335 600 550 1290 90 4,46 12,28 WGVPA147060 1710 400 50 360 531 285 600 350 1530 90 4,40 10,82 WGVPA171040 1710 500 50 460 627

Pagina 2-Calorifer decorativ baie VON LORCH Vipera Fisa tehnica Engleza
1,48

4,33

WGVPA051050

220

120
...

Pagina 3 - Calorifer decorativ baie VON LORCH Vipera Fisa tehnica Engleza 337

600

450

1530

90

4...

337 600 450 1530 90 4,79 12,48 WGVPA171050 1710 600 50 560 722 388 800 550 1530 90 5,17 14,13 WGVPA171060 A↕ B↔ C1 C2 [mm] [mm] [mm] [mm] 510 400 50 360 510 500 50 460 510 600 50 560 750 400 50 360 750 500 50 750 600 50 990 400 990 500 990 TERMA | www.termaheat.pl [W] p 20180430 CiborowskiTomasz page 3 of 6 Vipera Technical drawing: 51 ÷ 59 Z1 ZX G 1/2" C1 Z8 GG1/2" 1/2" C1 F C1 G 1/2" 51 ÷ 59 G 1/2" 57 ÷ 65 Z1 57 ÷ 65 A E C1 51 ÷ 59 2xG 1/2" C2 B D G 1/2" G 1/2" 51 ÷ 59 57 ÷ 65 G 1/2" C1 57 ÷ 65 57 ÷ 65 B D 72 ÷ 80 2xG 1/2" C2 72 ÷ 80 SX ZX G 1/2" G 1/2" 51 ÷ 59 SX G 1/2" C1 57 ÷ 65 G 1/2" 15 F 51 ÷ 59 E A Z8 40 40 10 30 A — Height B — Width C1-C5 — Distance between pipe centres D — Horizontal distance between mounting bracket centres E — 15 Vertical distance between mounting brackets F — Distance between a mounting bracket and the bottom

Pagina 3-Calorifer decorativ baie VON LORCH Vipera Fisa tehnica Engleza 337

600

450

1530

90

4,79

12,48
...

Pagina 4 - Calorifer decorativ baie VON LORCH Vipera Fisa tehnica Engleza of the radiator
Collector:...

of the radiator Collector: Pipe: 40 10 30 40 TERMA | www.termaheat.pl 20180430 CiborowskiTomasz page 4 of 6 Vipera Product codes can be found in product data sheet tables. When placing an order, product codes should include the fully completed configuration part. The configuration code part should be placed after the main product code. The main product code and configuration part will appear as shown in the example below: The construction of a water and dual fuel radiator product and configuration code: WGVPA051040 K916ZX PRODUCT CODE (located in the table for the product) CONIGURATION CODE (supplemented by hand) Example Configuration K 916 ZX Package code K – carton box Plate color code Connection code Structure of configuration code for electric radiators with a heating medium: WLVPA051040 K916E1DRYW PRODUCT CODE (located in the table for the product) CONIGURATION CODE (supplemented by hand) Example Configuration K 916 E1 DRY W Package code K – carton box
