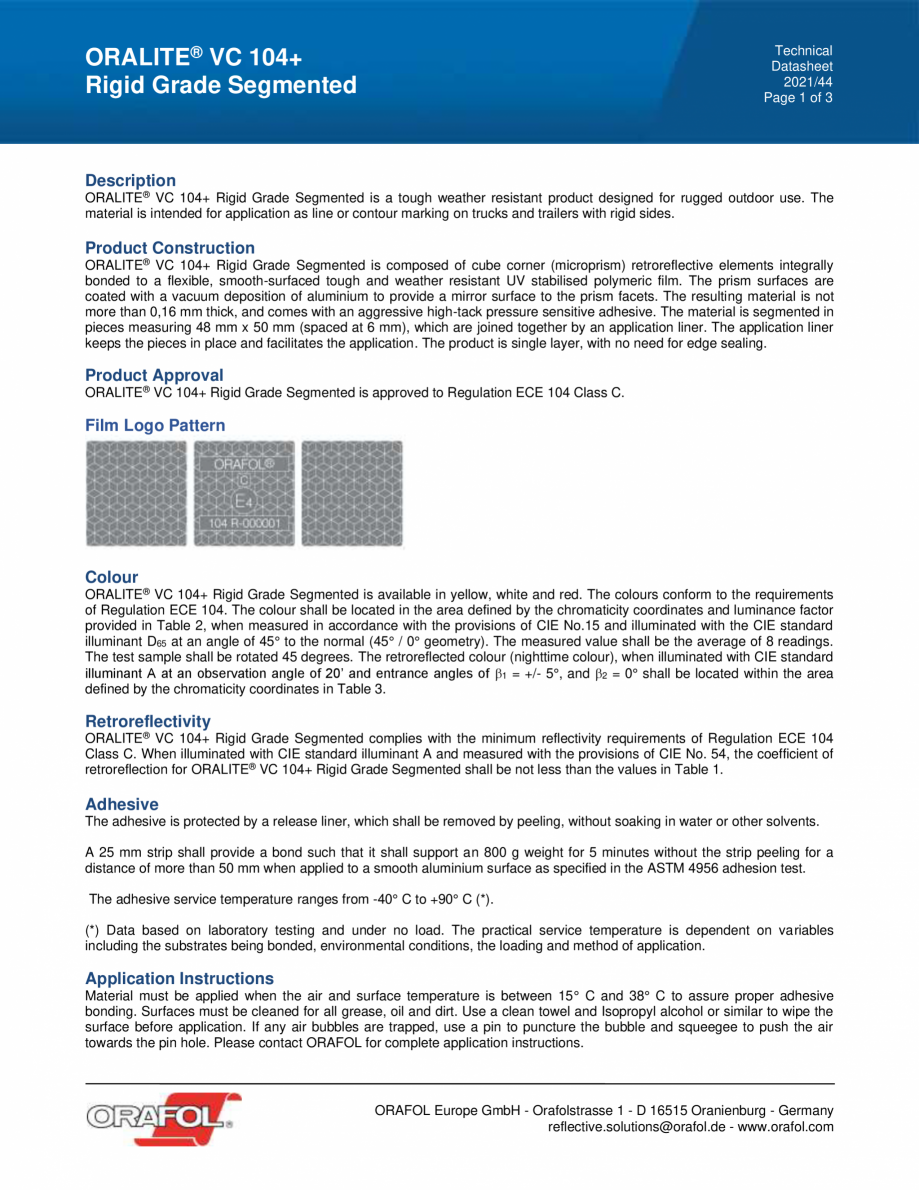

Technical Datasheet 2021/44 Page 1 of 3 ORALITE® VC 104+ Rigid Grade Segmented Description ORALITE® VC 104+ Rigid Grade Segmented is a tough weather resistant product designed for rugged outdoor use. The material is intended for application as line or contour marking on trucks and trailers with rigid sides. Product Construction ORALITE® VC 104+ Rigid Grade Segmented is composed of cube corner (microprism) retroreflective elements integrally bonded to a flexible, smooth-surfaced tough and weather resistant UV stabilised polymeric film. The prism surfaces are coated with a vacuum deposition of aluminium to provide a mirror surface to the prism facets. The resulting material is not more than 0,16 mm thick, and comes with an aggressive high-tack pressure sensitive adhesive. The material is segmented in pieces measuring 48 mm x 50 mm (spaced at 6 mm), which are joined together by an application liner. The application liner keeps the pieces in place and facilitates the application. The

Pagina 1-Banda reflectorizanta segmentata pentru suprafetele rigide ALGERNON ORALITE VC 104+ Rigid Grade...

Pagina 2 - Banda reflectorizanta segmentata pentru suprafetele rigide ALGERNON ORALITE VC 104+ Rigid...

product is single layer, with no need for edge sealing. Product Approval ORALITE® VC 104+ Rigid Grade Segmented is approved to Regulation ECE 104 Class C. Film Logo Pattern Colour ORALITE® VC 104+ Rigid Grade Segmented is available in yellow, white and red. The colours conform to the requirements of Regulation ECE 104. The colour shall be located in the area defined by the chromaticity coordinates and luminance factor provided in Table 2, when measured in accordance with the provisions of CIE No.15 and illuminated with the CIE standard illuminant D65 at an angle of 45° to the normal (45° / 0° geometry). The measured value shall be the average of 8 readings. The test sample shall be rotated 45 degrees. The retroreflected colour (nighttime colour), when illuminated with CIE standard illuminant A at an observation angle of 20’ and entrance angles of 1 = +/- 5°, and 2 = 0° shall be located within the area defined by the chromaticity coordinates in Table 3. Retroreflecti

Pagina 2-Banda reflectorizanta segmentata pentru suprafetele rigide ALGERNON ORALITE VC 104+ Rigid Grade...

Pagina 3 - Banda reflectorizanta segmentata pentru suprafetele rigide ALGERNON ORALITE VC 104+ Rigid...

vity ORALITE® VC 104+ Rigid Grade Segmented complies with the minimum reflectivity requirements of Regulation ECE 104 Class C. When illuminated with CIE standard illuminant A and measured with the provisions of CIE No. 54, the coefficient of retroreflection for ORALITE® VC 104+ Rigid Grade Segmented shall be not less than the values in Table 1. Adhesive The adhesive is protected by a release liner, which shall be removed by peeling, without soaking in water or other solvents. A 25 mm strip shall provide a bond such that it shall support an 800 g weight for 5 minutes without the strip peeling for a distance of more than 50 mm when applied to a smooth aluminium surface as specified in the ASTM 4956 adhesion test. The adhesive service temperature ranges from -40° C to +90° C (*). (*) Data based on laboratory testing and under no load. The practical service temperature is dependent on variables including the substrates being bonded, environmental conditions, the loading and method of
