Ascensor MP IFMA MP GO!

Limba: Engleza

1 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Ascensor MP IFMA MP GO! Fisa tehnica Engleza LIFTING improvements to the next level
...

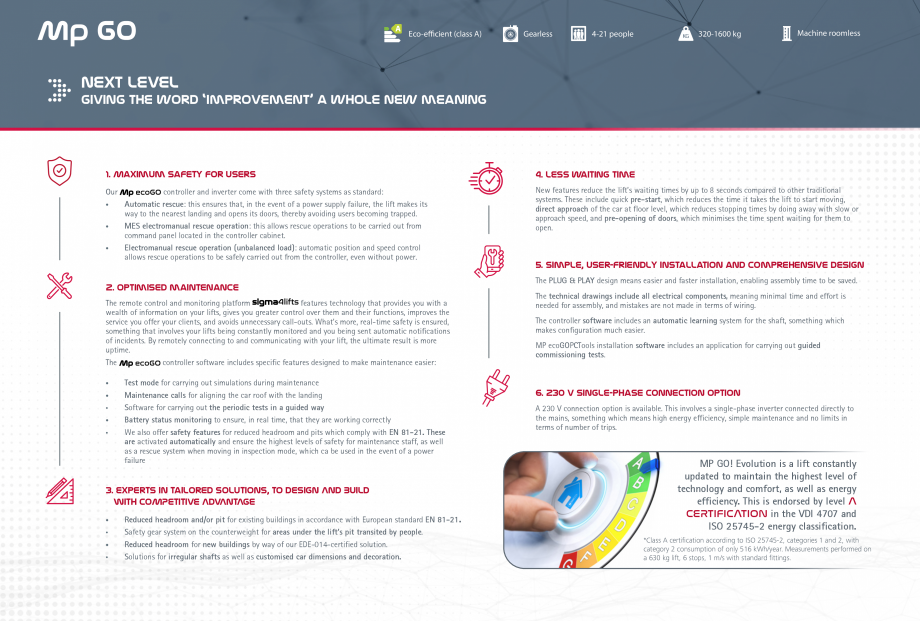

LIFTING improvements to the next level mplifts.com Eco-efficient (class A) Gearless 4-21 people 320-1600 kg Machine roomless NEXT LEVEL giving the word ‘improvement’ a whole new meaning 1. Maximum safety for users 4. Less waiting time Our controller and inverter come with three safety systems as standard: • Automatic rescue: this ensures that, in the event of a power supply failure, the lift makes its way to the nearest landing and opens its doors, thereby avoiding users becoming trapped. • MES electromanual rescue operation: this allows rescue operations to be carried out from command panel located in the controller cabinet. • Electromanual rescue operation (unbalanced load): automatic position and speed control allows rescue operations to be safely carried out from the controller, even without power. New features reduce the lift’s waiting times by up to 8 seconds compared to other traditional systems. These include quick pre-start, which reduces the time it ta

Pagina 1-Ascensor MP IFMA MP GO! Fisa tehnica Engleza LIFTING improvements to the next level

mplifts.com
...

Pagina 2 - Ascensor MP IFMA MP GO! Fisa tehnica Engleza kes the lift to start moving,
direct...

kes the lift to start moving, direct approach of the car at floor level, which reduces stopping times by doing away with slow or approach speed, and pre-opening of doors, which minimises the time spent waiting for them to open. 5. Simple, user-friendly installation and comprehensive design The PLUG & PLAY design means easier and faster installation, enabling assembly time to be saved. 2. Optimised maintenance The technical drawings include all electrical components, meaning minimal time and effort is needed for assembly, and mistakes are not made in terms of wiring. The remote control and monitoring platform features technology that provides you with a wealth of information on your lifts, gives you greater control over them and their functions, improves the service you offer your clients, and avoids unnecessary call-outs. What’s more, real-time safety is ensured, something that involves your lifts being constantly monitored and you being sent automatic notifications of incidents.

Pagina 2-Ascensor MP IFMA MP GO! Fisa tehnica Engleza kes the lift to start moving,
direct approach of the...

Pagina 3 - Ascensor MP IFMA MP GO! Fisa tehnica Engleza By remotely connecting to and...

By remotely connecting to and communicating with your lift, the ultimate result is more uptime. The controller software includes specific features designed to make maintenance easier: • • • • • The controller software includes an automatic learning system for the shaft, something which makes configuration much easier. MP ecoGOPCTools installation software includes an application for carrying out guided commissioning tests. Test mode for carrying out simulations during maintenance Maintenance calls for aligning the car roof with the landing Software for carrying out the periodic tests in a guided way Battery status monitoring to ensure, in real time, that they are working correctly We also offer safety features for reduced headroom and pits which comply with EN 81-21. These are activated automatically and ensure the highest levels of safety for maintenance staff, as well as a rescue system when moving in inspection mode, which ca be used in the event of a power failure 6.

Pagina 3-Ascensor MP IFMA MP GO! Fisa tehnica Engleza By remotely connecting to and communicating with your...

Pagina 4 - Ascensor MP IFMA MP GO! Fisa tehnica Engleza 230 v single-phase connection option
A 230 ...

230 v single-phase connection option A 230 V connection option is available. This involves a single-phase inverter connected directly to the mains, something which means high energy efficiency, simple maintenance and no limits in terms of number of trips. 3. Experts in tailored solutions, TO DESIGN AND BUILD WITH COMPETITIVE ADVANTAGE • • • • Reduced headroom and/or pit for existing buildings in accordance with European standard EN 81-21 Safety gear system on the counterweight for areas under the lift’s pit transited by people. Reduced headroom for new buildings by way of our EDE-014-certified solution. Solutions for irregular shafts as well as customised car dimensions and decoration. . MP GO! Evolution is a lift constantly updated to maintain the highest level of technology and comfort, as well as energy efficiency. This is endorsed by level A CERTIFICATION in the VDI 4707 and ISO 25745-2 energy classification. *Class A certification according to ISO 25745-2, categories

Pagina 4-Ascensor MP IFMA MP GO! Fisa tehnica Engleza 230 v single-phase connection option
A 230 V...

Pagina 5 - Ascensor MP IFMA MP GO! Fisa tehnica Engleza 1 and 2, with
category 2 consumption of...

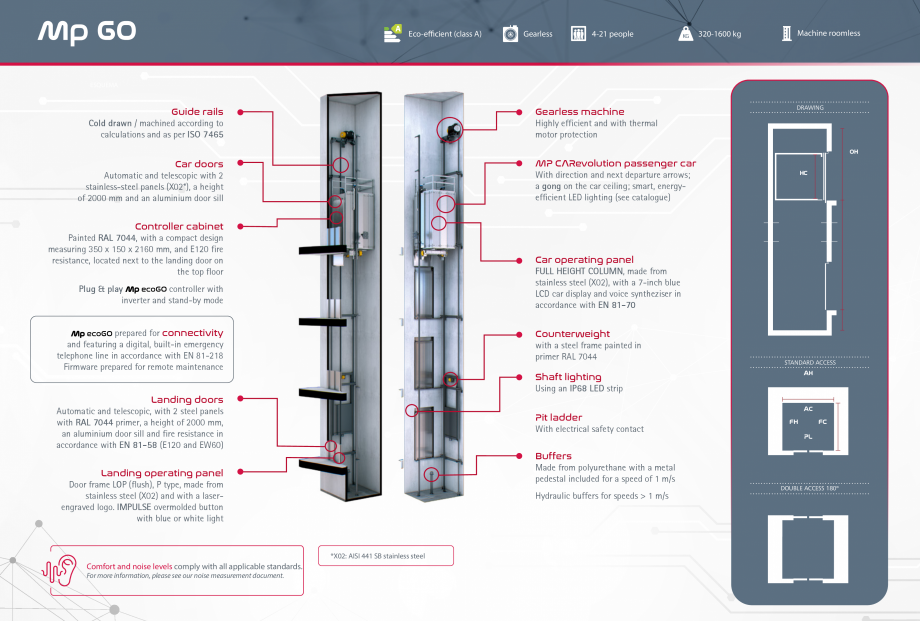

1 and 2, with category 2 consumption of only 516 kWh/year. Measurements performed on a 630 kg lift, 6 stops, 1 m/s with standard fittings. Eco-efficient (class A) Gearless 4-21 people 320-1600 kg Machine roomless ESQUEMA Guide rails Cold drawn / machined according to calculations and as per ISO 7465 Gearless machine Highly efficient and with thermal motor protection Controller cabinet Painted RAL 7044, with a compact design measuring 350 x 150 x 2160 mm, and E120 fire resistance, located next to the landing door on the top floor HC Car operating panel FULL HEIGHT COLUMN, made from stainless steel (X02), with a 7-inch blue LCD car display and voice syntheziser in accordance with EN 81-70 controller with Plug & play inverter and stand-by mode prepared for connectivity and featuring a digital, built-in emergency telephone line in accordance with EN 81-218 Firmware prepared for remote maintenance Counterweight with a steel frame painted in primer RAL 7044 STANDARD ACCESS Α

Pagina 5-Ascensor MP IFMA MP GO! Fisa tehnica Engleza 1 and 2, with
category 2 consumption of only 516...

Pagina 6 - Ascensor MP IFMA MP GO! Fisa tehnica Engleza H

Shaft lighting
Using an IP68 LED strip

...

H Shaft lighting Using an IP68 LED strip Landing doors Automatic and telescopic, with 2 steel panels with RAL 7044 primer, a height of 2000 mm, an aluminium door sill and fire resistance in accordance with EN 81-58 (E120 and EW60) Pit ladder With electrical safety contact ΑC FH FC PL Buffers Made from polyurethane with a metal pedestal included for a speed of 1 m/s Landing operating panel Door frame LOP (flush), P type, made from stainless steel (X02) and with a laserengraved logo. IMPULSE overmolded button with blue or white light Hydraulic buffers for speeds > 1 m/s *X02: AISI 441 SB stainless steel For more information, please see our noise measurement document. OH MP CARevolution passenger car With direction and next departure arrows; a gong on the car ceiling; smart, energyefficient LED lighting (see catalogue) Car doors Automatic and telescopic with 2 stainless-steel panels (X02*), a height of 2000 mm and an aluminium door sill Comfort and noise levels comply with a
