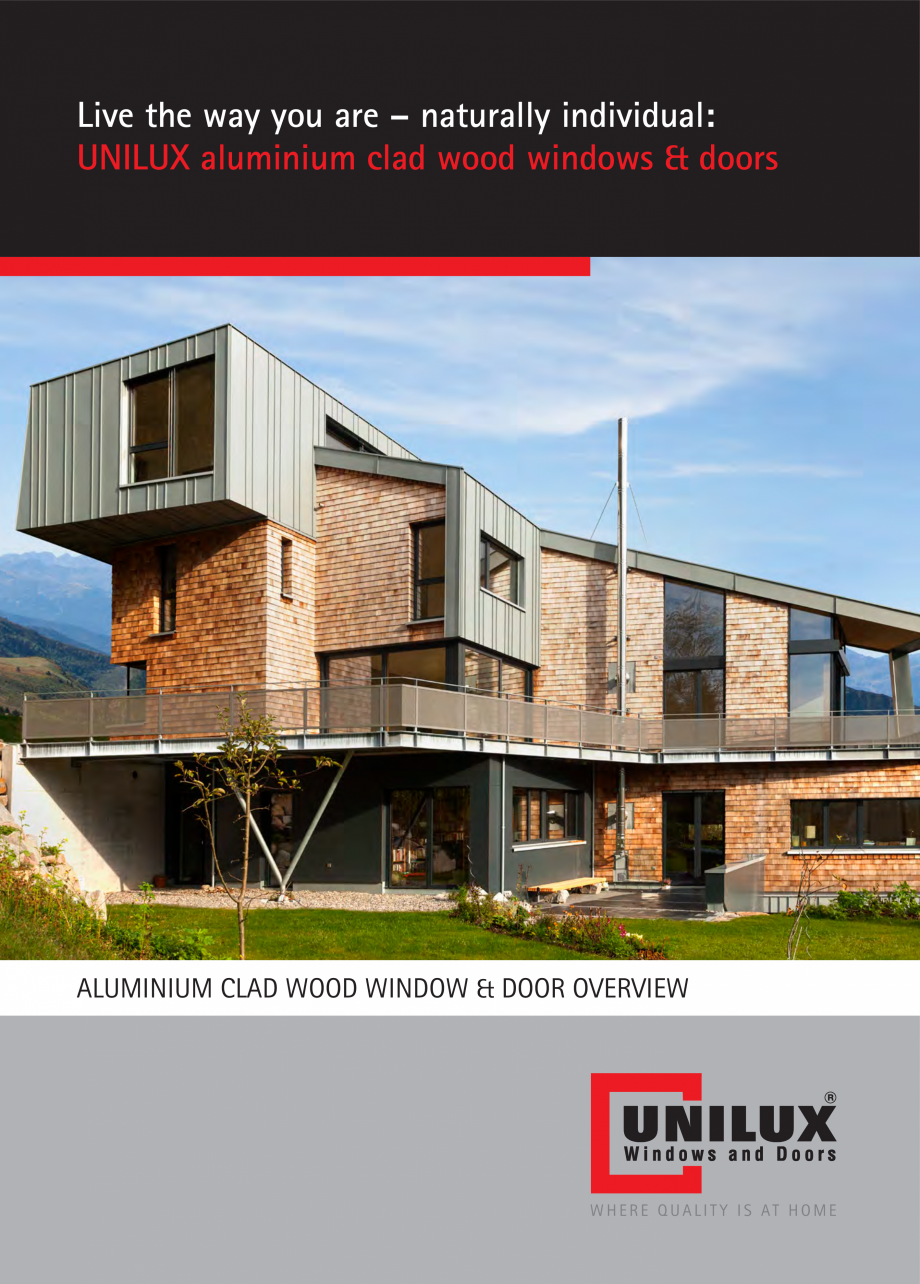

Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
ALUMINIUM CLAD WOOD WINDOW & DOOR OVERVIEW
WHERE QUALITY IS AT HOME
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
WHERE QUALITY IS AT HOME
2
www.unilux.de
Contents
UNILUX: Where quality is at home
4-5
All good things come in sixes: Brand advantages of UNILUX
6-7
Advantages of mixed materials
8-9
UNILUX aluminium clad wood windows series DesignLine
10-13
UNILUX aluminium clad wood windows series ModernLine
10-13
UNILUX aluminium clad wood windows series LivingLine
10-13
UNILUX aluminium clad wood windows series DesignLine Privacy
14-15
UNILUX aluminium clad wood windows frames for renovation
16-17
UNILUX basic advantages and UNILUX optional advantages
18-19
Freedom of design in terms of material and color
20-21
Glass competence and security
22-23
Unlimited variety of shapes, handles, shades and screens
24-25
The unique UNI
LUX MAXXIGLASS gallery
26-39
The reliability of a big name
40-41
3
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
WHERE QUALITY IS AT HOME
4
www.unilux.de
UNILUX
One brand.
One promise.
The only thing modern-day windows have in common with their
“ancestors” is their name. Good carpentry work and appearance
alone is no longer enough, because energy efficiency, safety, and
functionality standards have increased dramatically to meet today’s
customer needs.
That’s why all UNILUX aluminium clad wood products are in-house
developments, demonstrating an extraordinary degree of product
intelligence and complex engineering.
To ensure these masterpieces are not just available to a selected
group of people, UNILUX produces them as series, enabling
these unique aluminium clad wood products to be sold at prices
which make top quality affordable.
UNILUX – where quality is at home
5
Live the way you are – naturally individual:
UNIL
UX aluminium clad wood windows & doors
All good things come in sixes:
The UNILUX
brand advantages
Brand advantage 1: Durability
Ever since its early days, UNILUX has always used the highest-quality materials. Down
to the finest detail: instead of the inferior silicon, we use smooth glazing seals made
from synthetic rubber. The high-quality workmanship and strict quality controls ensure
you gain long-term enjoyment from your UNILUX window.
Brand advantage 2: Freedom of design
Tastes are subjective. That’s why you can choose from three designs (LivingLine,
ModernLine, DesignLine), five fine woods (pine, oak, alder, larch and exotic wood),
187 wood finishes, 2,132 different aluminium colors/patterns, 34 handles and several
double-pane and triple-pane glass types. And let’s not forget: the most diverse window
shapes (they don’t always have to be square), and, upon request, true divided, simulated
divided and internal grids in various sizes and styles.
Brand advantage 3: Energy ef
ficiency
UNILUX’s solid construction style not only guarantees durability, but also help save
energy. Each of our aluminium clad wood products has state-of the-art „warm-edge“
spacers between the glass panes, ensuring better thermal values, greater comfort near
the window, and significantly reduced condensation build-up during colder months.
Heating costs can be further reduced through highly efficient triple-pane glass with a
thickness of at least 11/2”/40 mm (SuperThermo3, UltraThermo3, ThermoWhite3).
WHERE QUALITY IS AT HOME
6
www.unilux.de
Brand advantage 4: Safety
Sometimes a window’s job is not just to keep out wind
and rain, but also uninvited guests. That’s why all UNILUX
locking parts are made from high-quality materials. Mushroom
pins are also a standard feature of all our aluminium clad wood
window fittings. For maximum protection, we offer the SAFE
range (with the option of A1 laminated safety glass, DINcertified by the German National Authority on Fire Arm
s and
Ammunition) and special alarm systems.
Brand advantage 5: Service
UNILUX only works with expertly qualified window specialist
retailers, located across the country with their own showrooms. Your
regional UNILUX retailer will offer you detailed advice and assist you
with your plans. It will also ensure prompt, correct installation, and
will be available at any time if you have any service-related needs.
Brand advantage 6: Brand quality
Since 1955, UNILUX’s philosophy has been: Only products of uncompromising
quality must leave the factory. This saw our company become a recognised quality leader
over the decades. Anyone who pays heed to the UNILUX logo can be certain of always receiving a
“Made in Germany”-branded product.
7
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
WHERE QUALITY IS AT HOME
8
www.unilux.de
ADVANTAGES OF ALUMINIUM CLAD WOOD
Aluminium on the outside,
pure wood on the inside –
combined for generations.
Wood creates comfort – it is a feel-good material.
Aluminium on the other hand, is a robust protective shield against the
elements. Together, they form an aluminium clad wood product which
lasts generations without the need for continuous maintenance.
The wood interior does not require UV protection in the form
of colouring pigments in the finish. It can be used in its natural
form (transparent stain) thanks to the aluminium shell.
The aluminium shield firmly encases the wood, protecting
it from the elements while still giving room to expand and
contract and cope perfectly with temperature fluctuations.
UNILUX aluminium clad wood products: The originals.
9
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
Aluminium Clad windows
Discover the world of UNILUX
PASSIVE
No fine print, no compromises, no exceptions.
With every UNILUX aluminium clad window you obtain a
passive house star no matter the type of design. DesignLine,
LivingLine or Mo
dernLine, all series meet the stringent passive house windows criteria.
Passive House Stars – built to save energy
WHERE QUALITY IS AT HOME
10
E HOUSE
UNILUX DesignLine 0.8
The attractive way to save on
energy costs (heating or cooling).
The DesignLine aluminium clad
wood window range combines
W/m2K
architectural elegance and stateof-the-art energy efficiency. Uncompromising
in terms of aesthetics, it is designed for highquality residential buildings and condominium
buildings.
UW
0.8
UNILUX
Modern arc
have served
series. The a
windows ty
W/m2K
by without
frippery. With their clear, s
are perfect for contempora
dings with a city flair.
UW
0.8
UNILUX DesignLine 0.7
Energy savings at the highest level.
Thermal value improves by 46%
compared to a standard windows.
This is made possible by a special
W/m2K
impermeable core, gas-filled triplepane glass, “warm-edge” spacers, double-sided
(invisible) low-e-coating and a total glass thickness of 17/8”/48 mm.
UW
0.7
UNILUX
Th
ree glass
ness of nea
custom-des
core, therm
W/m2K
special fillin
coating on both sides impr
es by 46% compared to co
UW
0.7
11
www.unilux.de
UW
0.8
2
W/ m K
UW
0.7
2
W/ m K
2
5 btu/ft hF
.1
0
:
ed
rt
ve
n
2
U-value co
7 btu/ft hF
.1
0
:
d
te
es
-t
C
U-value NFR
2
3 btu/ft hF
.1
0
:
ed
rt
ve
n
2
U-value co
.16 btu/ft hF
0
:
d
te
es
-t
C
FR
U-value N
E
ModernLine 0.8
chitectural classics
d as ideal for this
aluminium clad
ype ModernLine get
embellishments or
straight lines, they
ary houses and buil-
UNILUX LivingLine 0.8
Some things never need to
change. The aluminium clad
windows in the LivingLine
series are so discreet that
W/m2K
they fit harmoniously into
any traditional architecture, and are very
attractive when renovating older buildings
as well.
UW
0.8
ModernLine 0.7
panes with a thickarly 5mm (2”), a
signed insulating
mally isolated spacers,
ng gas, and invisible
rove insulation valuonventional windows.
UNILUX LivingLine 0.7
In addition to a third glazing la
yer
for a glass thickness of almost two
inches, the LivingLine 0.7 has a
custom-designed insulating core,
W/m2K
special filling gas, invisible coating
on both sides, and thermally isolated
spacers. This makes its thermal insulation 46%
better than a standard window.
UW
0.7
12
The key-values of our PASSIVE HOUSE STARS
The secret of every Passive House Star is created by our encouraged engineers and developers.
By affecting the smallest detail in construction they are able to reduce thermal loss.
The question ‘How’ can be seen in every window. Innovations that aren’t even visible make the
difference. The performance of our windows’ design is what inspires our customers day by day
and what makes us call them ‘Stars’.
WHERE QUALITY IS AT HOME
13
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
Aluminium clad wood windows
DesignLine Privacy
“My home is my castle.” Just block the world out. Be undisturbed, footloose and fancy
free. This is
easy with the aluminium clad wood DesignLine Privacy window. Thanks to integrated blinds, you can
create privacy at any time – even by remote control if you wish. Also save on energy compared to a
roller-shutter or venetian blind box.
DesignLine Privacy
Advantages on
5 levels
1. Privacy
Discretion could not be more easily achieved. Nothing
has to be built, mounted or improvised. The blinds move
easily, via remote control if required.
2. Peace and quiet
Three or even four glass panes mounted some distance
from one another enable unrivalled sound-proofing. Test
it for yourself and pull the blind up: You’ll see the cars
but won’t hear them.
W HWE HR E RQE UQAUL A
I TLYI TIYS IAST AHT OHMOEM E
3. Warmth
Roller-shutter or venetian-blind boxes are often energy
guzzlers. Heat escapes and cold creeps in. DesignLine
Privacy gets rid of this airlock. Since the blind is now part
of the window, the boxes are no longer required.
4. Security
When it comes to glazing, UNILU
X uses materials such
as tempered or laminated safety glass, which is particularly resistant to impacts, effectively protecting against
uninvited guests.
5. Freedom of design
The integrated blind – with your choice of color – offers
you a wide range of possibilities. As you don’t require
shutters, curtains or separately mounted blinds, your
freedom of design is greater than ever before.
www.unilux.de
UW
0.8
2
W/ m K
2
0.15 btu/ft hF
:
ed
rt
ve
n
co
e
2 F
U-valu
: 0.17 btu/ft h
d
te
es
-t
C
FR
N
U-value
Try out more comfort.
As an option to the standard chain cord, the
blinds integrated into many windows can
now be operated by remote control from
the comfort of your sofa, armchair or bed.
UW
0.8
W/m2K
UNILUX DesignLine Privacy
Internal blind
Easy to clean
Sleek appearance
The energy-efficient alternative to the box above
the window. It can be easily adjusted to the
sun’s position via motor or chain. As it is located
inside, it hardly gets dirty, either.
The blin
d sits in front of the insulated glass
unit, making the rare cleaning sessions a piece
of cake. Simply open the sash, clean it, and
you’re done!
No frills, no gadgets.
The DesignLine models stand for clear, puristic
lines. Timeless window design.
15
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
Aluminium clad wood windows frames
for renovation
The smart way
to renovate windows
Window renovation can be so easy! Thanks to the renovation window frame from UNILUX, replacing
obsolete windows is child‘s play. You don‘t even need to worry about plaster or wallpaper. Everything
gets done cleanly and quickly.
Experienced installers manage that by simply removing the sashes of your old windows and cutting
off the frame. Then they already have the groundwork laid for your new wood-aluminum window.
You can choose from all the many variants of a DesignLine window. And just like windows for new
construction, you have all the different options fo
r design available. For custom windows at lightning
speed.
The decisive factor: The skill of installers matches the high quality of our windows. So you can be
absolutely certain that your energy-saving DesignLine window with renovation window frames will
have the same thermal insulation values as a DesignLine window in a new house. And plastering and
wallpapering? They‘re just as much a thing of the past as masonry repair.
The renovation window frame from UNILUX – new windows, without the stress.
New windows, no muss, no fuss.
Clean insertion into the old window frame leaves the masonry and stucco
intact, and interior plaster and wallpaper aren‘t affected either. Even an existing
window sill can be cleanly integrated.
The new window fits harmoniously into the existing window opening, from
both the visual and technical points of view.
New renovation
window frame
Old window frame
Masonry and stucco
WHERE QUALITY IS AT HOME
16
www.unilux.de
UW
0.8
2
W/ m K
2 F
: 0.15 btu
/ft h
ed
rt
ve
n
co
e
u
U-val
u/ft2hF
bt
7
.1
0
:
d
te
es
U-value NFRC-t
UW
0.8
W/m2K
UNILUX
renovation window frames
Clean
Safe
Fast
The entire area is cleanly covered and taped
before work begins. The old window sashes are
removed, and the old frames cut off without
leaving dust. They will be used as the foundation
of the new window structure.
By stable anchoring into the frame and the
masonry and by adding foam and insulation,
our new windows aren‘t just visually attractive – they‘re also attractive when it comes to
security and thermal insulation.
Once the new frame is inserted and anchored,
the only thing left to do is simply to mount the
new sashes and hardware. And then your room
shines in a new light – without the mess, and
without the stress.
17
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
Quality as a standard: the basic UNILUX advantages
As you know from buying cars, some models look cheap at first glance. Bu
t upon closer examination,
you are incredulous at all the extras charged by the manufacturer.
That’s not the case at UNILUX. Our basic features in themselves are so extensive, that there is often
no need for accessories. Each of our standard aluminium clad wood windows has the following
special features:
Glazing seal
Aluminium cladding slider couplings
Silicon may be cheap, but it fades
easily, is hard to clean, and susceptible to cracks and abrasion.
UNILUX uses the better alternative:
synthetic rubber, which is easy to
clean, fade-resistant, long-lasting
and hardly noticeable.
Superior-quality wood
Not all woods are the same. To
guarantee a consistently high
quality of materials, we use our
own experienced wood purchasers, even in the most distant of
supply countries. The same strict
standards are applied during
treatment – to ensure the wood has a long and healthy life.
Security
Every standard UNILUX aluminium
clad wood window has a mushroom pin in its fittings, which
greatl
y prevents the window from
being pried open. All locking parts
are also made from high-quality
materials, providing added security.
Aluminium powder coating
Embedded (recessed) lock keepers
“The exterior paint has chipped”
is a phrase unfamiliar to UNILUX
customers. Because our aluminium clad wood windows are made
using aluminium powder coating,
which has been tried and tested
in the automotive industry. The
result is highly robust paintwork able to withstand even
the harshest of elements.
Impressive not only aesthetically,
but also from a security perspective – due to being recessed
compared to screwed-on locking
parts.
And the window frames are also
easy to clean due to the fact that
all the metal parts are recessed/embedded.
WHERE QUALITY IS AT HOME
18
Aluminium contracts or expaqnds
more than wood in cold or hot
weather, creating tension on the
frame. We prevent this from happening by mounting the aluminium cladding on slider couplings
– similar to a rail system. Thi
s
also ensures the wood is properly ventilated at all times.
www.unilux.de
Extra perfect: the UNILUX optional advantages
Special circumstances require special solutions. That’s why UNILUX offers exclusive added value when it
comes to security, material protection and energy usage.
These additional benefits also give you the peace of mind of knowing you have the ultimate aluminium
clad wood windows. Perfection, made by UNILUX.
Added security: SAFE
Plus: Aneloxal coating
We offer special alarm system
and SAFE ranges for maximum
protection. SAFE II and SAFE III
are an affordable and effective
way of making things difficult
for burglars. UNILUX provides
the right solutions, from the
4-corner security locks - in which sturdy mushroom pins
firmly grip the locking parts of all 4 corners of a window
sash – to the A1 safety glass. For higher standards, there is
also the EN 1627ff-certified security of resistance class 2.
It’s not just acid rain which
can corrode metal. Salty sea
ai
r can also have aggressive,
negative impacts up to 60
miles/100 kilometers inland
– including on stainless
steel. Pre-anodising, - the
“aneloxal” process – effectively prevents corrosion.
We are one of the very few manufacturers to use
this form of coating at customers’ requests, thereby
ensuring UNILUX aluminium clad wood windows
remain a symbol of durability, even in coastal areas.
Extra warmth: Triple glazing
Solar gain: ThermoWhite3
Triple-pane instead of dualpane. The additional pane
further improves Thermal properties, thereby lowering energy
costs, and as the triple pane
glass is between 11/2”/40mm
and 1 7/8”/48mm thick, it can
also be effectively sound-proofed.
A 3-pane insulated glazing
option which does more
than just keep the cold out.
Thanks to a new, invisible
Low-e coating, you can
more intensively utilise the
energy from the sun’s rays.
More solar heat finds its way into the house. And
this coating – combined with the argon gas fill –
ensures it s
tays there.
Coating for ThermoWhite3
Argon gas fill
The special coating lets more sun and warmth in.
While the heat “ricochets” around inside and
remains in the house, thanks also to the argon
gas fill.
19
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
Freedom of design in terms of material and colour
How many different tastes are there? Around 2 million when it comes to wood and color. Because that’s how
many combination options you have for your individual UNILUX aluminium clad wood windows. Find out which
wood species goes best with which color, and which pattern goes with the aluminium cladding.
Exotic wood
Larch
Pine
Choose from 5 wood species and 192 colors (167 RAL opaque colors and 25 finishes) for the
internal design (the wood species and wood coating), while the outer design (aluminium cladding)
has even more options, allowing you to choose from over 2,100 colors and patterns (RAL, NCS, DB,
Eloxal (anodized aluminium
coating) and white-pigment colors, as well as wood patterns).
RAL colors
Wood patterns
DB & metallic colors
NCS colors
WHERE QUALITY IS AT HOME
20
www.unilux.de
Colors may vary due to printing.
Choose from the following wood species: Pine, oak, alder, larch and exotic wood, as well as 20 transparent or semi-transparent finishes.
Oak
Alder
You love wood
Your world is colorful
It’s your choice
Wood is a living material, so it’s nice if you can
incorporate it into your living space. UNILUX
aluminium clad wood windows bring this vitality
to your living room.
Colors are an expression of personality and attitude
towards life. Show off your taste and choose from a
range of colors which leaves nothing to be desired.
Even when it comes to wood colors, UNILUX always
gives you the choice. Select from a wide variety of
wood species, and make the most of the options for
designing the wood’s color scheme.
21
Live the way you are – naturally individual:
UNILUX aluminium cla
d wood windows & doors
Glass competence
Every UNILUX window has double-glazed insulating glass. Even this standard version achieves insulation
values that are outstanding for any window. But that‘s not enough for our engineers and developers.
For anybody who wants to get serious about thermal insulation, UNILUX also offers triple-glazed insulating
glass in a number of varieties.
It‘s your choice: for example, SuperThermo3, in which the additional layer of glass is barely noticeable in the
price. Or UltraThermo3, which uses argon/krypton gas filling to obtain sensational insulation values.
Or ThermoWhite3, which not only insulates, but actively makes use of the heat from incoming sunlight.
However you decide, every UNILUX window is an example of groundbreaking glass competence.
WHERE QUALITY IS AT HOME
22
Coating in the ThermoWhite3
Argon gas filling
The special coating lets more sun
and warmth in.
The heat, however, „ricochets“ around inside and
remains in the house, tha
nks also to the argon
gas filling.
www.unilux.de
UNILUX SAFE package:
Make short work of burglars
1
1
1
1
SAFE means:
safety without compromise
Burglars are under time pressure. The harder
we make their „work“, the faster they‘ll look
elsewhere. That‘s exactly the goal of our
SAFE packages.
3
2
1
1
1
1
1
They make sure that a would-be burglar
will think twice about trying your UNILUX
wood-aluminum windows.
Clever blocking systems prevent potential
thieves from being able to break the window
open.
For the greatest possible security, we
even offer A1 safety glass tested by the
German National Authority on Firearms
and Ammunition.
1
2
SAFE package II: The best protection against prybars, and crowbars. The four-corner mushroom pin
interlock and a handle with a locking button make it effectively impossible to lever out and unlock the
window.
2
3
SAFE package III: The best protection against hammers, prybars, and crowbars. Because the SAFE
package 3 not only has f
our-corner mushroom pin interlock and a handle with a locking button, but
also has anti-vandal A1 safety glass (double-glazed insulating glass).
1
3
RC2 package: Anti-vandal effectiveness tested in an independent laboratory for compliance with
EN 1627-30 Resistance Class 2 for special safety needs. The RC2 window includes a surrounding
mushroom pin interlock, a lockable window handle, anti-vandal A3 safety glass, and the panes are glued
to the frame. Available for LivingLine, ModernLine, and DesignLine in variants 0.8 and 0.7 as well as
DesignLine Privacy. Your UNILUX retail partner will be happy to explain the feasible elements to you.
1
2
3
Four-corner mushroom pin interlock
Handle with locking button
Tested A1 composite safety glass
Burglars often try to lever the window out of the
frame. The four-corner mushroom pin interlock
makes that much more difficult. The pins engage
firmly into the locking parts – the lever has no
point of attack.
Thieves often open the lock by
inserting their tool
between the window and the frame. The locking
button prevents that. The window can only be
opened if the locking button inside is pressed – too
bad for crook, who stays on the outside.
Too hard for a hammer. A1 safety glass is put to
the test by the German National Authority on
Firearms and Ammunition. Thanks to a specially
developed, highly crack-resistant PVB film, it even
stays shut when the glass breaks.
23
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
Endless variety of shapes
There are practically no limits when selecting the shape of your aluminium clad wood
windows. Triangular or circular window? Sectional or semicircular arch? With or without
SDL or TDL bars? Your specialised UNILUX trade partner will show you what’s possible.
A handle on design
Design you can grab: Every UNILUX handle is not only a solid piece of “Made in Germany”
workmanship, but also a visual gem. A tool enabling you to express y
our taste and style.
Standard handle
silver colors
WHERE QUALITY IS AT HOME
24
Standard handle
steel colors
Standard handle
bronze colors
Standard handle
white
Stainless steel handle
angular shape
Stainless steel handle
L-shape
Stainless steel handle
U-shape
www.unilux.de
Shades and screens
There are different options for protection from intensive sunlight and curious eyes.
Whether classical roller shutter, elegant Venetian blinds, or traditional aluminum
shutters, UNILUX offers you your individual shade and screen solution. By the way,
we have a few good recipes against insects, too.
Venetian blinds
Blindingly bright or pitch dark? Venetian blinds give you many more
nuances than that. They can control incoming light on a continuous
basis. The strips, with their adjustable tilt, allow you to determine
exactly how much sunlight you let into your rooms.
And the Venetian blind also has an excellent visual appearance.
Roller shutter
When it comes to blocking out light, roller
shutters have been
the benchmark forever. No wonder they‘re preferred for use in
bedrooms. And since the box appearance is the same as for our
venetian blinds, you can combine UNILUX roller shutters and
Venetian blinds together harmoniously.
Every house facade is different. That‘s why UNILUX
lets you select from different box variants when it
comes to privacy protection.
For new construction we recommend plaster base
variants, because roller shutters or Venetian blinds
are then integrated into the external stucco. There
is no break in the masonry in this case – no thermal
bridge, meaning less energy consumption.
Good to know: For boxes with exterior serviceaccess, you can put up wallpaper inside with no
worries – the visually bothersome access-cover
disappears.
Shutters
There are things that trends and fashion simply can‘t change.
Because their beauty is timeless. UNILUX shutters add value to any
country home or city villa. And since they‘re made of aluminum,
they have no
problem fending off rain and storm. For life-long
pleasure in comfortable aesthetics.
Insect protection
It‘s not just in bedrooms that insects are a bother. Biting flies and
wasps can rob your enjoyment of the fresh air. So you can still air
out without the worries, there are special clamping frames and
rotating doors. You can easily mount these insect screens yourself.
Comfort is so easy.
Contour roller
shutter
Round roller
shutter
Reduced design
through edged
visuals
Round visuals,
specifically eyecatching
Plaster variants
Behind the stucco –
nearly invisible.
Variety of bars and dividers
Lockability
Sunshades and more
Divided lights are the icing on the cake when
it comes to a window’s appearance. Our range
covers four different lines, from true divided
and simulated divided lites to the astragal and
georgian bar designs.
Not every window needs to be opened, especially
when there are small children around. That’s why
most of our handles come with a lock button, an
d
are also available as lockable variants. Just in case.
At UNILUX, we have folding shutters, first-class
roller shutters, and insect screens that are
either built into the roller shutter box or act
as a separate component.
25
The unique UNILUX
WHERE QUALITY IS AT HOME
26
www.unilux.de
For unlimited vision and new spheres of experience.
27
Full-glass corner window
OpenView
The dream which comes true.
OpenView allows you to gaze far into the distance –
without any interfering window frames in the corner.
Uninterrupted views for as far as the eye can see.
Technical masterpiece
Completely transparent, but based on a sophisticated
UNILUX structure. The two conjoined symmetrical
stepped-edge glass panes contains invisible insulation
which effectively minimises condensation build-up. The
black strip distinguishing the glass corner is made from
high-quality enamelling which looks like it is crushed in
the glass, meaning only a shadow gap is visible. Typical
UNILUX – the mast
ering down to the finest detail.
Freedom of design
Whether as a strip of tall windows or a large glass field,
OpenView adds value to modern, high-quality architecture. Of course, this impressive structural feature comes
in wood species, contours, wood colors and external
colors which blend in perfectly with the UNILUX aluminium clad wood windows. It is also available with energy
saving triple-pane glass, upon request.
WHERE QUALITY IS AT HOME
28
www.unilux.de
Maximum performance
Safety glass
Slender profile
Both in terms of energy and architecture: The symmetrical corner is connected via two stepped-edge
glass panes, allowing the glass behind them to be
insulated in a virtually invisible manner.
The standard tempered safety glass (with seal)
ensures firmness and optimised load distribution.
The filigree design enables maximum transparency.
Aesthetics and robustness become one thanks to
the safety glass.
29
Lift/Slide system
PocketDoor
The disappearing door. The panels of
the PocketDoor
can be fully slid into a pocket in the wall, rendering
them invisible. This makes it possible to have up to
30’/9 meter wide openings and over 269 sq ft/25 sqm
open spaces – for maximum brightness and fascinating
possibilities for design.
Fluid transition
The lack of a conventional threshold – there are only tiny,
barely noticeable tracks – means the interior and exterior
flooring can be seamlessly fit into one another, posing no
obstacle when you walk in or out.
Architectural freedom
The trend-setting PocketDoor was created for sophisticated, state-of-the-art architecture. It stands for pure
living elegance, tailored perfectly to the UNILUX aluminium clad wood windows. Also available with energy
saving triple–pane glass upon request.
WHERE QUALITY IS AT HOME
30
www.unilux.de
Seamless connection
Invisible
Up to 30’/9 meter of freedom
The countersunk tracks of the UNILUX PocketDoor
can be seamlessly integrated into the flooring.
The UNILUX PocketDoo
r can be fully and invisible
hidden in the special pocket. For an open-plan
feeling.
Using up to 6 door panels, which can seamlessly
disappear into one or two wall pockets, creates an
amazing feeling of space.
31
Lift/Slide system
HS
The classic model in its most convenient form.
With the lift/slide system, you’ll see how sliding
becomes gliding. A simple panel movement creates
an opening approximately 10’/3 meter wide and
9’/2.8 meter high.
Exemplary craftmanship
The lift/slide system perfectly demonstrates nature of
UNILUX’s products. High-quality hardware and solid
constructions enable long-lasting elements which ensure
maximum views and grand openings.
Freedom of design
Pic: 1
Easy on the eye: The lift -slide system comes in wood
species, contours, wood colors and external colors which
blend seamlessly into the UNILUX aluminium clad wood
windows. With energy saving triple-pane glass, upon
request.
WHERE QUALITY IS AT HOME
32
www.unilux.de
A handle on everything
Low threshold
Shared sash profiles
Thanks to a practical recess and solid handle,
the panels can be easily moved both inside and
outside. The system also comes in a lockable
version.
Depending on the architecture, the threshold can
be integrated into the floor for an almost fluid
transition.
Design from the same mould: The sash
profiles of the lift/slide system are tailored to the entire UNILUX line.
33
Bi-Fold (sliding-folding) system
Exterior
There are no obstacles here. You don’t need to move any plants or
standard lamps, because the door panels fold outwards, creating an
opening up to 25/7.7 meter wide and 9’/2.8 meter high.
And a nice benefit: If you open the door after a rain shower, the
water automatically drains to the outside – leaving everything
dry inside.
Exemplary durability
The bi-fold door perfectly demonstrates the stable and
durable nature of UNILUX’s products. Aluminium is used
as the base material and wood as the cladding, creating
a high degree of
rigidity in one element, in which everything fits perfectly together.
Freedom of design
Easy on the eye: The bi-fold door comes in wood species,
contours, wood colors and external colors which blend
seamlessly into the UNILUX aluminium clad wood window line(including energy saving triple-pane glass).
Pic: 1
Even the external handle can be matched to the unit’s
exterior color. And upon request, the bi-fold door is also
available with embedded threshold.
WHERE QUALITY IS AT HOME
34
www.unilux.de
Seamless connection
Freedom of interior design
Handles
Depending on the architecture, the panels’ castors can be integrated into the floor – forming
the basis for a flat sill track and fluid transition.
As the panels open outwards, you don’t need to create
any space for them inside. And when they are opened,
raindrops land on the terrace instead of the floor.
Practical when you want to get out quickly.
Depending on how the elements are divided, a standard door handle can be i
nstalled (in the same color
as the element’s exterior).
35
Façade system (Curtain Wall)
FineLine
The name’s the game. FineLine is distinguished
by its slender yet solid post & beam construction.
The sophisticated connection technology allows
even tricky architectural tasks to be mastered with
maximum quality.
Exemplary strength
UNILUX only uses solid, laminated wood protected by
a weather-proof aluminium cladding, which also holds
the glass panes in place. These robust materials, as well
as the sophisticated, invisible connection technology
for posts and beams, ensure maximum stability even for
large façades extending beyond one floor.
Freedom of design
Easy on the eye: The large glass areas enable personalised
interior design.
Pic: 4
The slender, elegant FineLine façade comes in a variety
of wood species and colors, contours and aluminium
exterior colors, which blend seamlessly into the UNILUX
aluminium clad wood window lines Available with energy
saving triple-pane gla
ss, upon request.
WHERE QUALITY IS AT HOME
36
Pic: 3
Pic: 2
Pic: 2
www.unilux.de
Energy efficiency
Aesthetics
Workmanship
Optimum U-value according to passive house
standards is achieved, thanks to the thermally
insulated construction. The heat stays in and the
cold stays out.
Solid wood, perfectly presented. The base connection with post-and-beam profile is just one
example of the importance UNILUX places on highquality architectural solutions.
Closer inspection please. Examining details
reveals just how much precision work goes into
each UNILUX product.
37
Large-scale door
JumboLine
High window elements are increasingly popular. It’s
good when balcony doors can keep up. While the
standard balcony door gives out after 2.60 meters
(8’-6”), our JumboLine balcony doors can manage
heights of up to 3 meters (10’). The key are the
massive PowerHinge hinges, which can manage loads
of up to 300 kilograms.
Harmony in completion
Engineering and aesthetics make a harmoni
ous couple.
For example, the sash limiter which prevents the panel
from excessive opening is only visible when the door
opens. The structural glass and securely anchored hardware ensure maximum stability – the panel is easy to
operate even after many years.
Seamless integration
The JumboLine is available in all the aluminium clad
designs, aluminium colors, wood species and finishes of
the standard aluminium clad wood windows.
WHERE QUALITY IS AT HOME
38
Pic: 5
Pic: 4
www.unilux.de
Strong hardware
Invisible sash limiter
Filigree profiles
Thanks to solid door hinges, even heavy panels
(as a standard up to 385 lbs/175 kg, with PowerHinge up to 660 lbs/300 kg) are a piece of cake
for this large door. And a durable construction
ensures long-lasting use.
To protect the hinges, standard JumboLines
have a build-in, invisible turn restrictor which
automatically stops the door from opening
beyond a 90° angle.
The door may be tall and heavy, but its panels are
just as slim as any
of our elegant tilt-and-turn
windows.
39
Live the way you are – naturally individual:
UNILUX aluminium clad wood windows & doors
The reliability of a big name
UNILUX ensures award-winning long-term progress
- by selecting the right partners and raw-material suppliers, and by being a member of leading institutions and associations:
UNILUX products meet international test and safety standards:
Florida Certificate
of Product Approval
GOST
WHERE QUALITY IS AT HOME
40
ANODISERS
A S S O C I AT I O N
ALUMINIUM
A S S O C I AT I O N
EUROPEAN
www.unilux.de
Company info
Publisher
UNILUX GmbH
54528 Salmtal / Germany
Telephone +49(0)6578/189-0
Facsimile +49(0)6578/1880
E-Mail
info@unilux.de
www.unilux.de
Notes
The content of this catalogue is not legally binding and may be
subject to technical changes as part of further developments or errors
in the text, images or descriptions. We only allow images and text
material – including excerpts – to be used upon request, and with
our
express written consent.
The image material used is for illustrative purposes. Differences in
color are unfortunately unavoidable due to printing. The sample illustrations are not to scale.
© 2014, UNILUX GmbH. All rights reserved.
UNILUX headquarters, Salmtal
Internet access via the mobile QR code may incur costs dependent on the network operator and rate model selected.
Photos: UNILUX, iStockphoto, Fotolia, Shutterstock
Pic 1: Architekturbüro Johannes Kraus, AU 1070 Wien, Architekturbüro Broß – Kurzenberger, DE 79100 Freiburg | Pic 2: Architekturbüro Richard
Stihler, DE 77933 Lahr | Pic 3: Architekturbüro Hänggi, CH 4144 Arlesheim | Pic 4: OMP Gruppe Architektengesellschaft, DE 26180 Rastede |
Pic 5: POP Fassadenberatung, DE 28876 Oyten
41
Copyright © UNILUX GmbH 09/2014, WE 1036. Pic Cover: 1
UNILUX GmbH
54528 Salmtal / Germany
Telephone +49 (0)65 78 /189-0
Facsimile +49 (0)65 78 /18 80
E-Mail
info@unilux.de
www.unilux.de
WHERE QUALITY IS AT HOME
Alte documentatii ale aceleasi game Vezi toate
Catalog, brosura 88 p | EN
Catalog, brosura 84 p | EN
