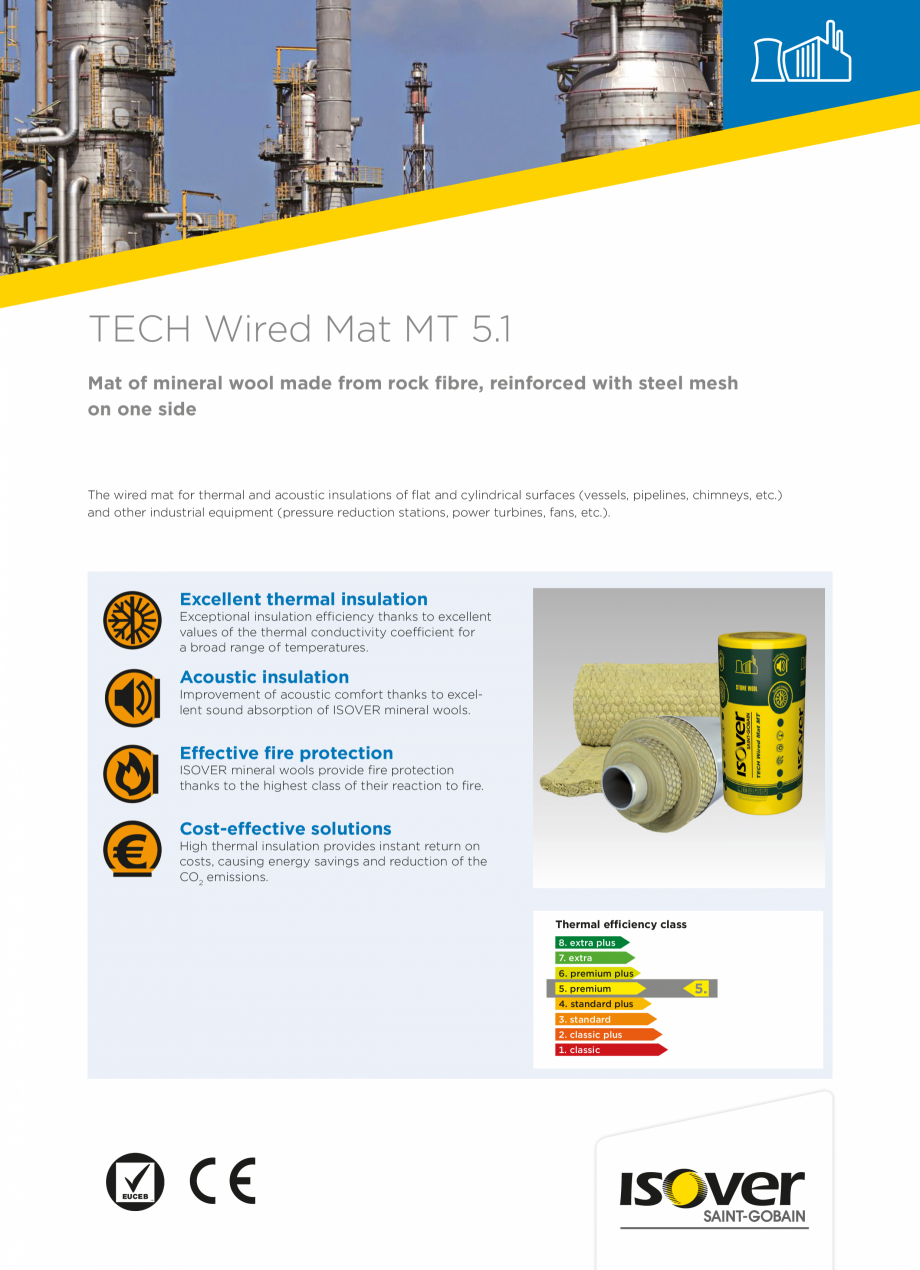

Pagina 1 - Saltele din vata minerala bazaltica cusute cu sarma zincata de otel, pe plasa rabit ...

TECH Wired Mat MT 5.1 Mat of mineral wool made from rock fibre, reinforced with steel mesh on one side The wired mat for thermal and acoustic insulations of flat and cylindrical surfaces (vessels, pipelines, chimneys, etc.) and other industrial equipment (pressure reduction stations, power turbines, fans, etc.). Excellent thermal insulation Exceptional insulation efficiency thanks to excellent values of the thermal conductivity coefficient for a broad range of temperatures. Acoustic insulation Improvement of acoustic comfort thanks to excellent sound absorption of ISOVER mineral wools. Effective fire protection ISOVER mineral wools provide fire protection thanks to the highest class of their reaction to fire. Cost-effective solutions High thermal insulation provides instant return on costs, causing energy savings and reduction of the CO2 emissions. Thermal efficiency class 8. extra plus 7. extra 6. premium plus 5. premium 4. standard plus 3. standard 2. classic plus 1. classic

Pagina 1-Saltele din vata minerala bazaltica cusute cu sarma zincata de otel, pe plasa rabit ISOVER TECH...

Pagina 2 - Saltele din vata minerala bazaltica cusute cu sarma zincata de otel, pe plasa rabit ...

5. TECH Wired Mat MT 5.1 Mat of mineral wool made from rock fibre, reinforced with steel mesh on one side Characteristic Symbol Unit Value Standard Product – – Mat of mineral wool made from rock fibre, reinforced with galvanised steel mesh on one side. Upon Customer’s request the product is available in the variant with stainless wire stitching or a stainless mesh and stitching. Product with reduced content of chloride ions. – Declared value of the thermal conductivity T [°C] 50 100 200 300 400 500 600 650 λD [W/(m·K)] 0,039 0,045 0,061 0,081 0,106 0,137 0,175 0,197 Reaction to fire EN ISO 13787 – – A1 EN 13501-1 Maximum Service Temperature ST(+) MST [°C] 660 EN 14 706 Thickness tolerance class (1000Pa) – – T2 EN 823 Water absorption WS [kg/m2] ≤1 EN 1609 Trace quantity of water soluble chloride ions CL [mg/kg] <10 EN 13468 – The rolls of the mat are wrapped in the PE foil. Transport can be performed
