Rigola plastic GIMANI&MUFLE UCan

Limba: Engleza

63 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza UCan

technical data sheet
...

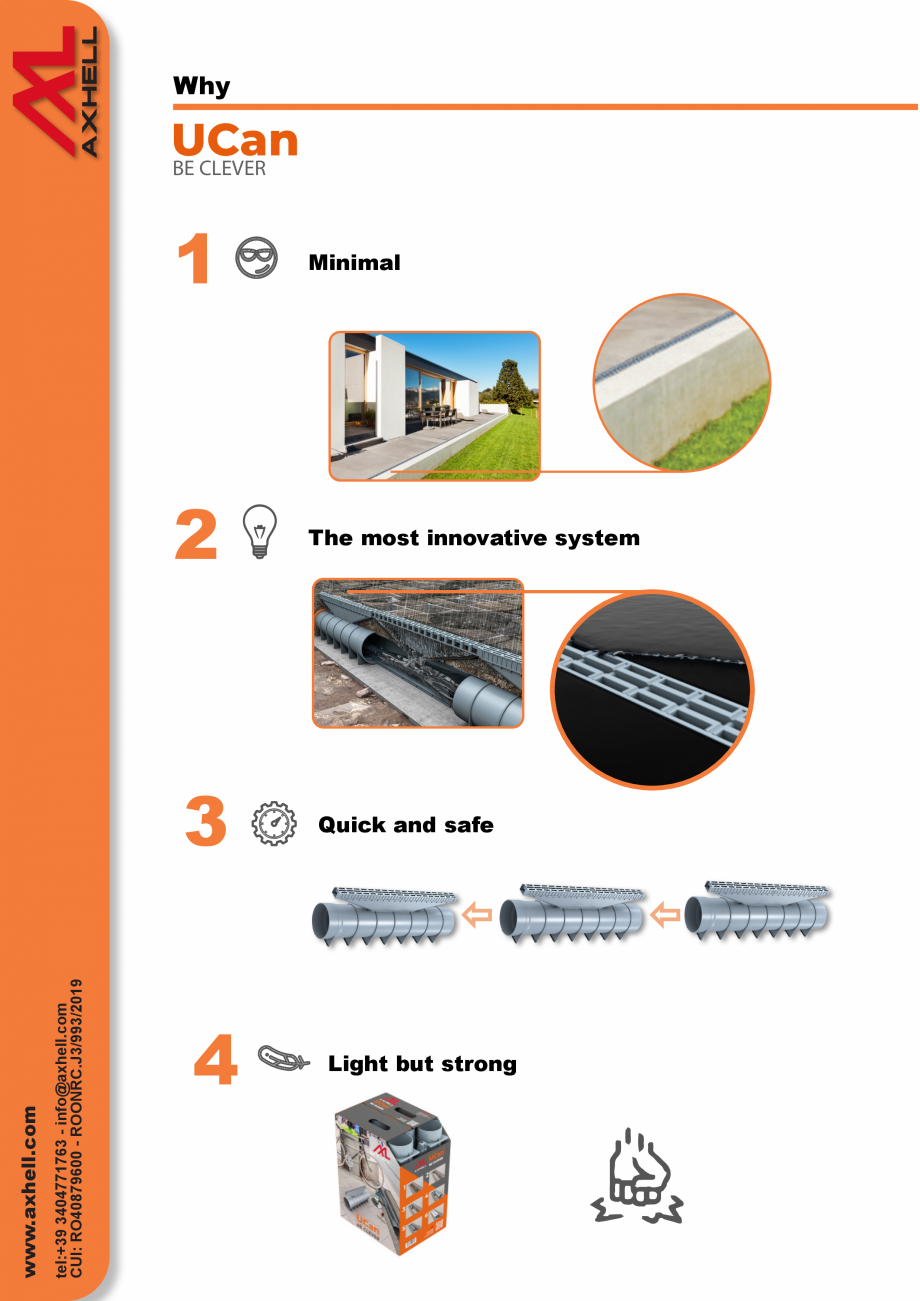

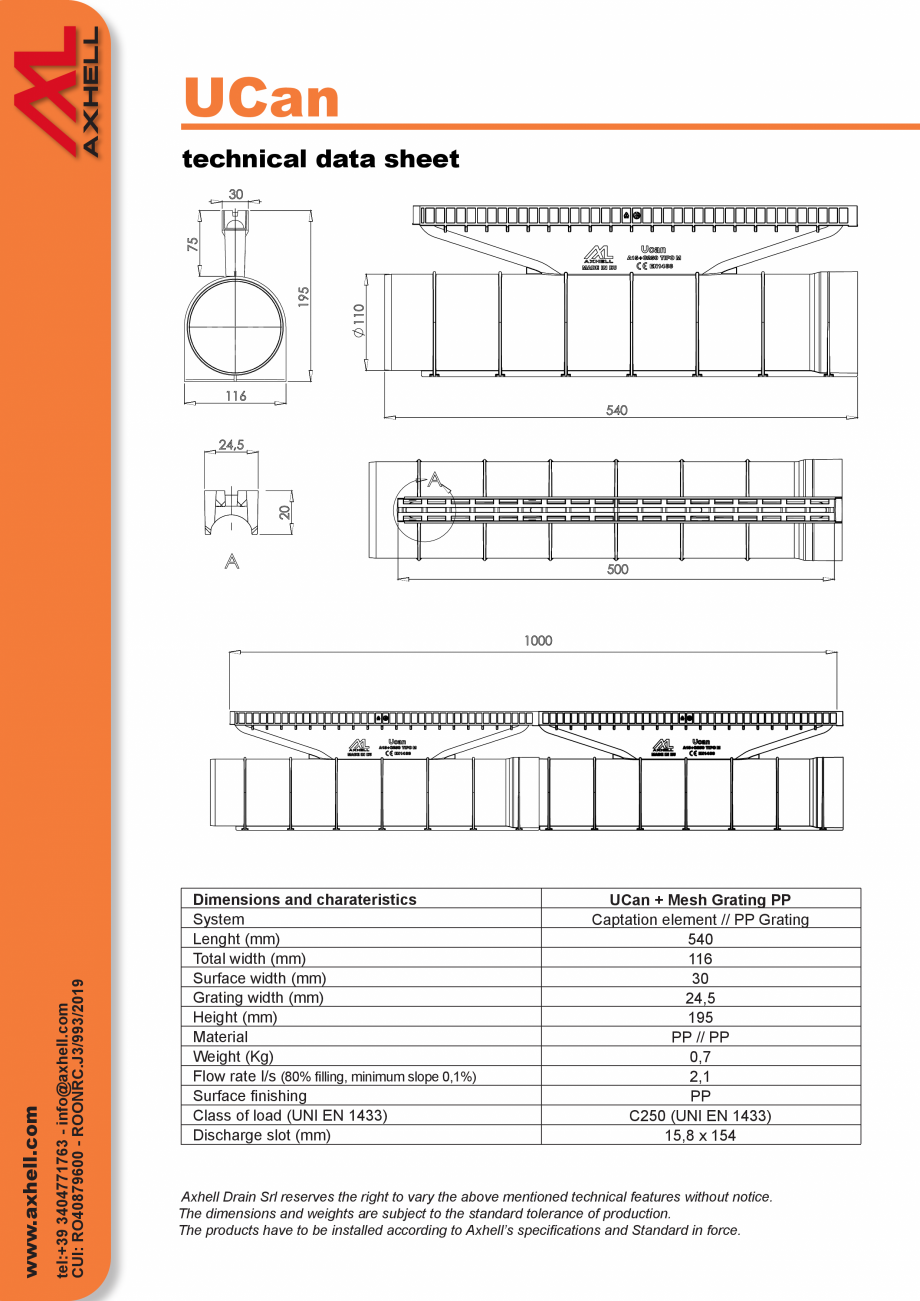

UCan technical data sheet tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com Why UCan BE CLEVER 1 Minimal 2 The most innovative system 3 4 Quick and safe Light but strong UCan technical data sheet 110 195 75 30 116 540 24,5 20 A A 500 tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com 1000 Dimensions and charateristics System Lenght (mm) Total width (mm) Surface width (mm) Grating width (mm) Height (mm) Material Weight (Kg) Flow rate l/s (80% filling, minimum slope 0,1%) Surface finishing Class of load (UNI EN 1433) Discharge slot (mm) UCan + Mesh Grating PP Captation element // PP Grating 540 116 30 24,5 195 PP // PP 0,7 2,1 PP C250 (UNI EN 1433) 15,8 x 154 Axhell Drain Srl reserves the right to vary the above mentioned technical features without notice. The dimensions and weights are subject to the standard tolerance of production. The products have to be installed according to A

Pagina 1-Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza UCan

technical data sheet

tel:+39...

Pagina 2 - Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza xhell’s specifications and...

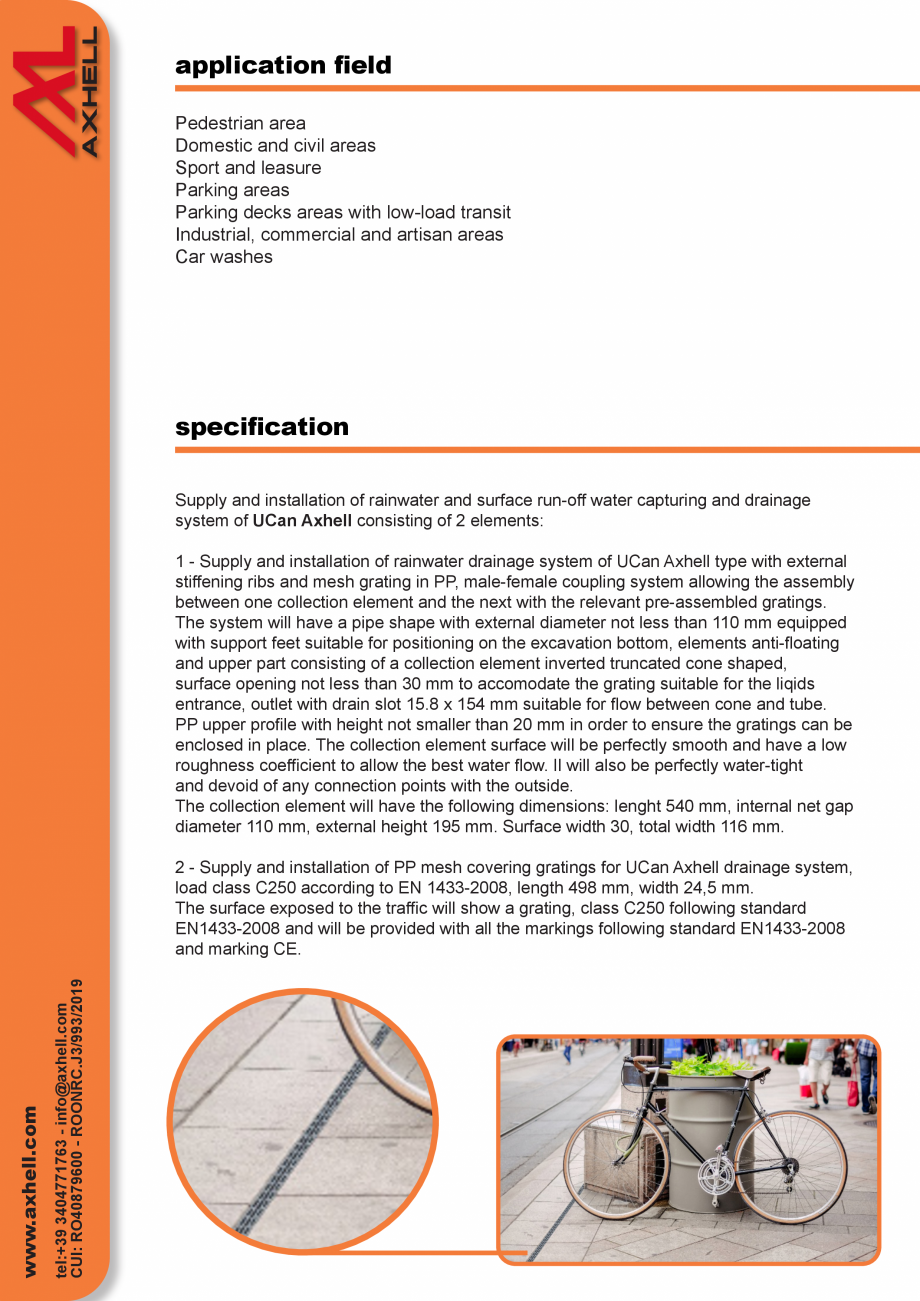

xhell’s specifications and Standard in force. application field Pedestrian area Domestic and civil areas Sport and leasure Parking areas Parking decks areas with low-load transit Industrial, commercial and artisan areas Car washes specification Supply and installation of rainwater and surface run-off water capturing and drainage system of UCan Axhell consisting of 2 elements: 1 - Supply and installation of rainwater drainage system of UCan Axhell type with external stiffening ribs and mesh grating in PP, male-female coupling system allowing the assembly between one collection element and the next with the relevant pre-assembled gratings. The system will have a pipe shape with external diameter not less than 110 mm equipped with support feet suitable for positioning on the excavation bottom, elements anti-floating and upper part consisting of a collection element inverted truncated cone shaped, surface opening not less than 30 mm to accomodate the grating suitable for the liqids en

Pagina 2-Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza xhell’s specifications and Standard in...

Pagina 3 - Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza trance, outlet with drain slot ...

trance, outlet with drain slot 15.8 x 154 mm suitable for flow between cone and tube. PP upper profile with height not smaller than 20 mm in order to ensure the gratings can be enclosed in place. The collection element surface will be perfectly smooth and have a low roughness coefficient to allow the best water flow. Il will also be perfectly water-tight and devoid of any connection points with the outside. The collection element will have the following dimensions: lenght 540 mm, internal net gap diameter 110 mm, external height 195 mm. Surface width 30, total width 116 mm. tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com 2 - Supply and installation of PP mesh covering gratings for UCan Axhell drainage system, load class C250 according to EN 1433-2008, length 498 mm, width 24,5 mm. The surface exposed to the traffic will show a grating, class C250 following standard EN1433-2008 and will be provided with all the markings following standard EN14

Pagina 3-Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza trance, outlet with drain slot 15.8 x 154 ...

Pagina 4 - Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza 33-2008
and marking CE.
...

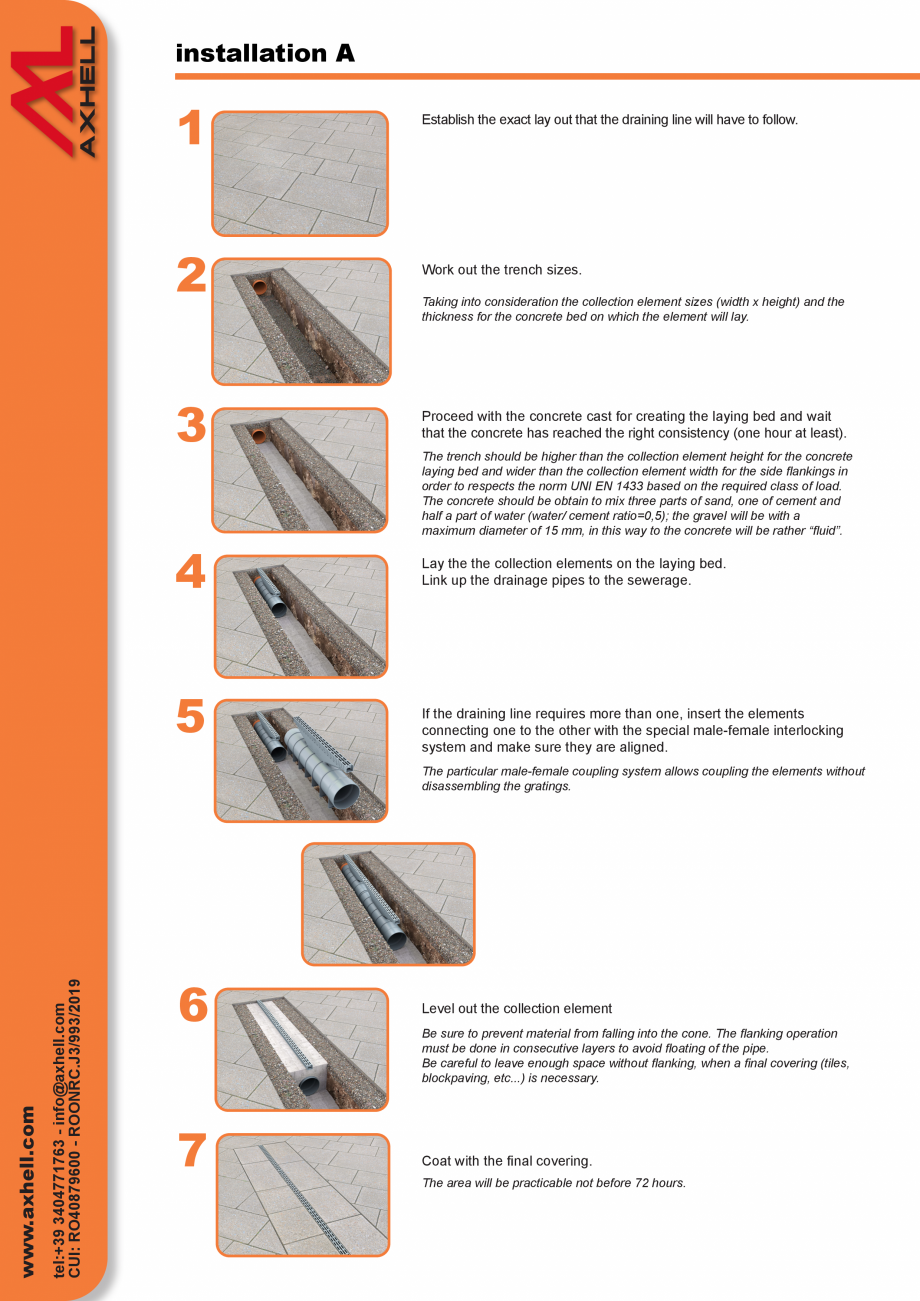

33-2008 and marking CE. installation A 1 Establish the exact lay out that the draining line will have to follow. 2 Work out the trench sizes. 3 Proceed with the concrete cast for creating the laying bed and wait that the concrete has reached the right consistency (one hour at least). 4 Lay the the collection elements on the laying bed. Link up the drainage pipes to the sewerage. 5 Taking into consideration the collection element sizes (width x height) and the thickness for the concrete bed on which the element will lay. The trench should be higher than the collection element height for the concrete laying bed and wider than the collection element width for the side flankings in order to respects the norm UNI EN 1433 based on the required class of load. The concrete should be obtain to mix three parts of sand, one of cement and half a part of water (water/ cement ratio=0,5); the gravel will be with a maximum diameter of 15 mm, in this way to the concrete will be rather “f

Pagina 4-Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza 33-2008
and marking CE.

installation A

...

Pagina 5 - Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza luid”.

If the draining line ...

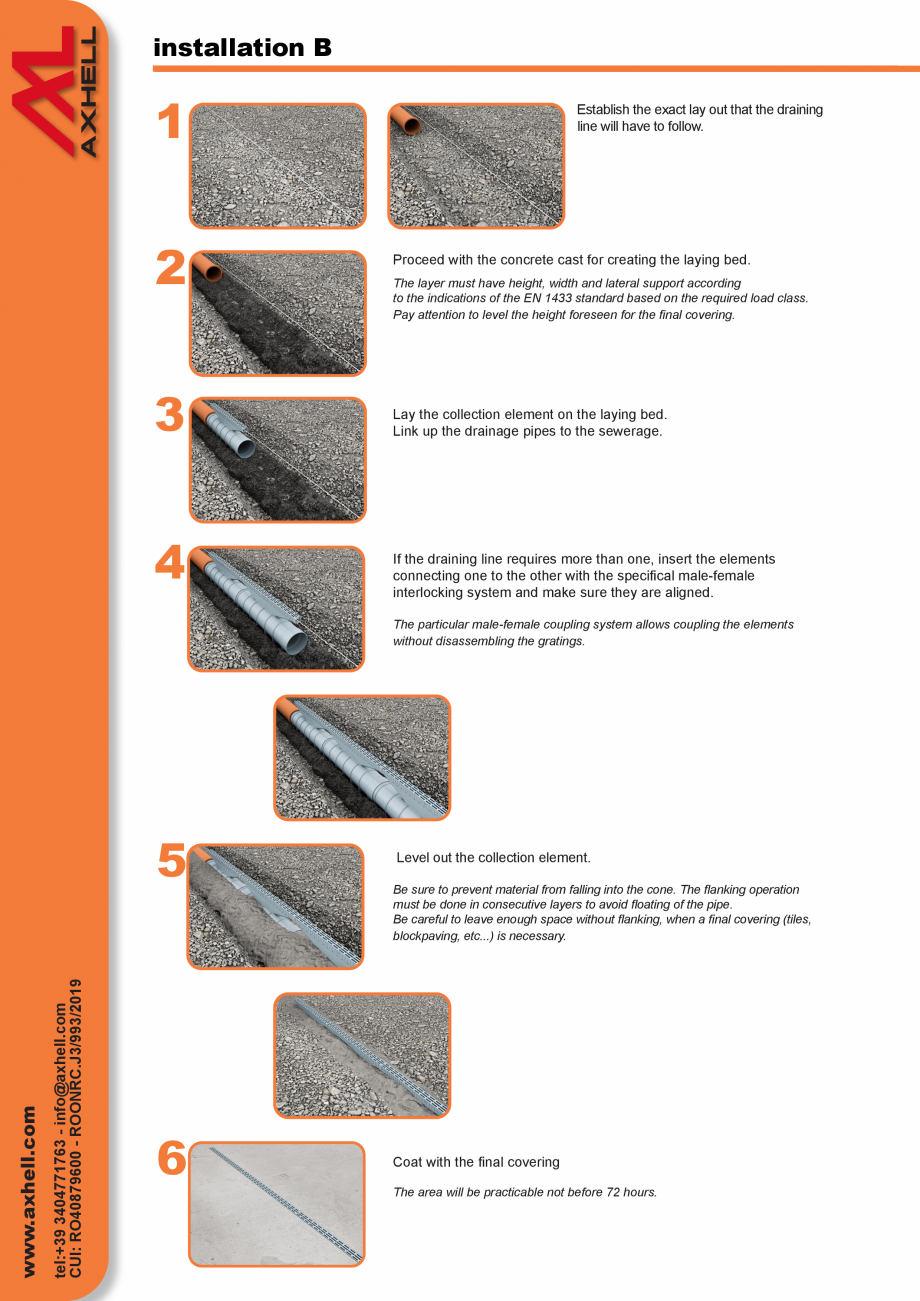

luid”. If the draining line requires more than one, insert the elements connecting one to the other with the special male-female interlocking system and make sure they are aligned. tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com The particular male-female coupling system allows coupling the elements without disassembling the gratings. 6 7 Level out the collection element Be sure to prevent material from falling into the cone. The flanking operation must be done in consecutive layers to avoid floating of the pipe. Be careful to leave enough space without flanking, when a final covering (tiles, blockpaving, etc...) is necessary. Coat with the final covering. The area will be practicable not before 72 hours. installation B 1 2 Proceed with the concrete cast for creating the laying bed. 3 4 Establish the exact lay out that the draining line will have to follow. The layer must have height, width and lateral support according

Pagina 5-Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza luid”.

If the draining line requires...

Pagina 6 - Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza to the indications of the EN...

to the indications of the EN 1433 standard based on the required load class. Pay attention to level the height foreseen for the final covering. Lay the collection element on the laying bed. Link up the drainage pipes to the sewerage. If the draining line requires more than one, insert the elements connecting one to the other with the specifical male-female interlocking system and make sure they are aligned. The particular male-female coupling system allows coupling the elements without disassembling the gratings. tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com 5 6 Level out the collection element. Be sure to prevent material from falling into the cone. The flanking operation must be done in consecutive layers to avoid floating of the pipe. Be careful to leave enough space without flanking, when a final covering (tiles, blockpaving, etc...) is necessary. Coat with the final covering The area will be practicable not before 72 hours. note

Pagina 6-Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza to the indications of the EN 1433 standard...

Pagina 7 - Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza
a) The height of the surface...

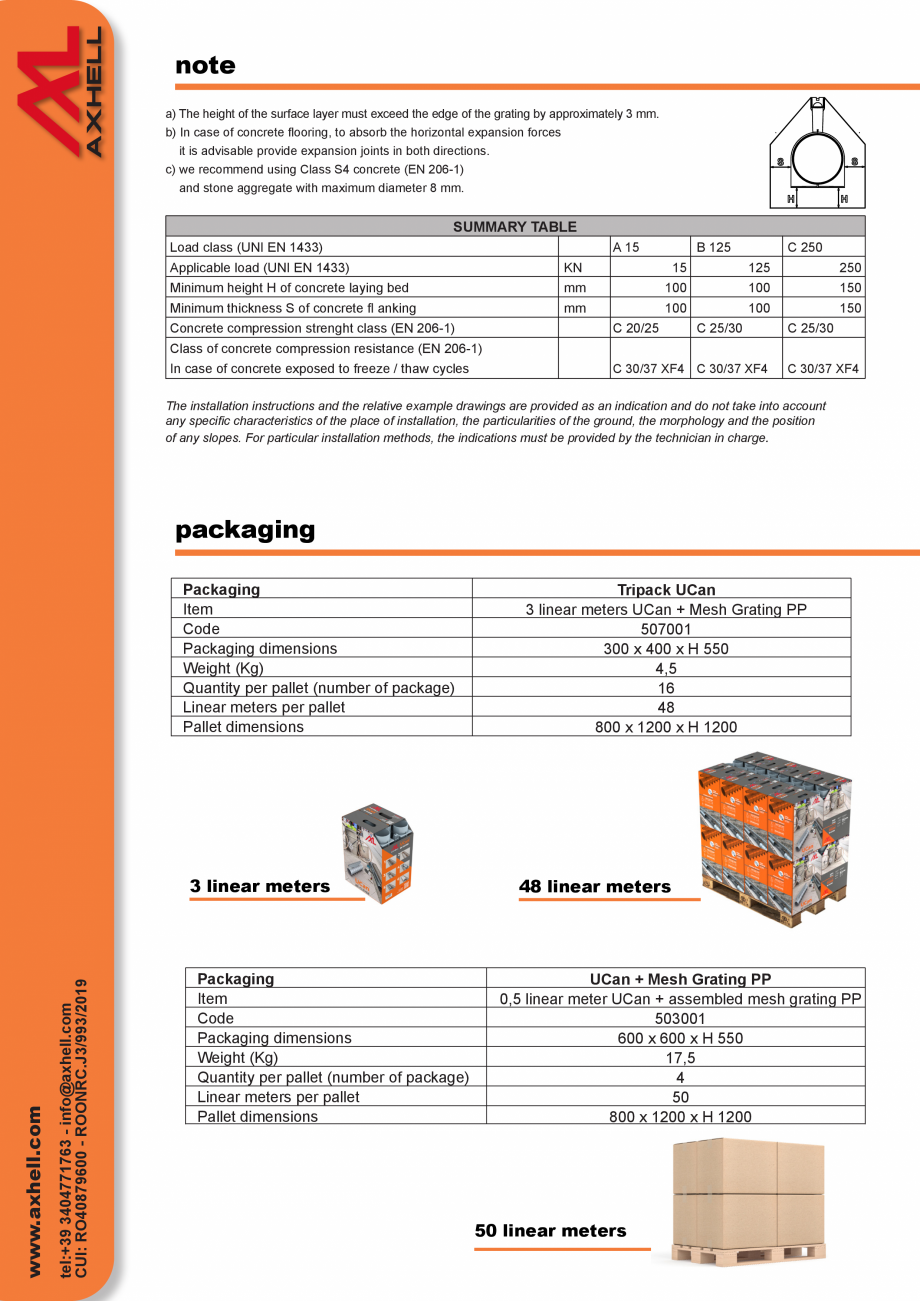

a) The height of the surface layer must exceed the edge of the grating by approximately 3 mm. b) In case of concrete flooring, to absorb the horizontal expansion forces it is advisable provide expansion joints in both directions. c) we recommend using Class S4 concrete (EN 206-1) and stone aggregate with maximum diameter 8 mm. SUMMARY TABLE Load class (UNI EN 1433) A 15 B 125 C 250 Applicable load (UNI EN 1433) KN 15 125 250 Minimum height H of concrete laying bed mm 100 100 150 Minimum thickness S of concrete fl anking mm 100 100 Concrete compression strenght class (EN 206-1) C 20/25 C 25/30 150 C 25/30 Class of concrete compression resistance (EN 206-1) In case of concrete exposed to freeze / thaw cycles C 30/37 XF4 C 30/37 XF4 C 30/37 XF4 The installation instructions and the relative example drawings are provided as an indication and do not take into account any specific characteristics of the place of installation, the particularities of the ground, the

Pagina 7-Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza
a) The height of the surface layer must...

Pagina 8 - Rigola plastic GIMANI&MUFLE UCan Fisa tehnica Engleza morphology and the position
of ...

morphology and the position of any slopes. For particular installation methods, the indications must be provided by the technician in charge. packaging Packaging Item Code Packaging dimensions Weight (Kg) Quantity per pallet (number of package) Linear meters per pallet Pallet dimensions tel:+39 3404771763 - info@axhell.com CUI: RO40879600 - ROONRC.J3/993/2019 www.axhell.com 3 linear meters Packaging Item Code Packaging dimensions Weight (Kg) Quantity per pallet (number of package) Linear meters per pallet Pallet dimensions Tripack UCan 3 linear meters UCan + Mesh Grating PP 507001 300 x 400 x H 550 4,5 16 48 800 x 1200 x H 1200 48 linear meters UCan + Mesh Grating PP 0,5 linear meter UCan + assembled mesh grating PP 503001 600 x 600 x H 550 17,5 4 50 800 x 1200 x H 1200 50 linear meters
