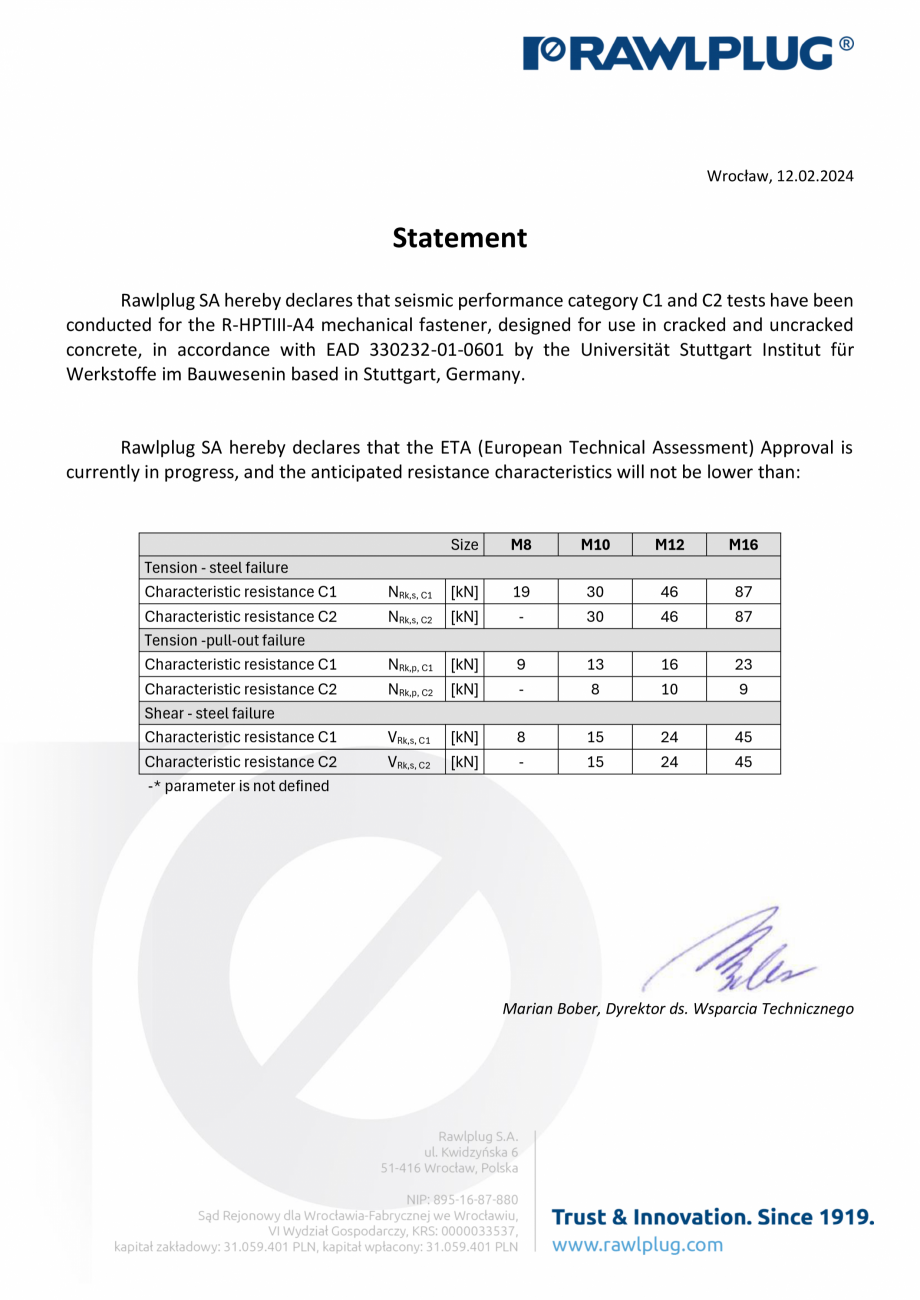

Pagina 1 - Rezistenta seismica pentru ancora expandabila din otel inoxidabil A4 pentru beton fisurat...

Wrocław, 12.02.2024 Statement Rawlplug SA hereby declares that seismic performance category C1 and C2 tests have been conducted for the R-HPTIII-A4 mechanical fastener, designed for use in cracked and uncracked concrete, in accordance with EAD 330232-01-0601 by the Universität Stuttgart Institut für Werkstoffe im Bauwesenin based in Stuttgart, Germany. Rawlplug SA hereby declares that the ETA (European Technical Assessment) Approval is currently in progress, and the anticipated resistance characteristics will not be lower than: Tension - steel failure Characteristic resistance C1 Characteristic resistance C2 Tension -pull-out failure Characteristic resistance C1 Characteristic resistance C2 Shear - steel failure Characteristic resistance C1 Characteristic resistance C2 -* parameter is not defined Size M8 M10 M12 M16 NRk,s, C1 NRk,s, C2 [kN] [kN] 19 - 30 30 46 46 87 87 NRk,p, C1 NRk,p, C2 [kN] [kN] 9 - 13 8 16 10 23 9 VRk,s, C1 VRk,s, C2 [kN] [kN] 8 - 15 15 2
